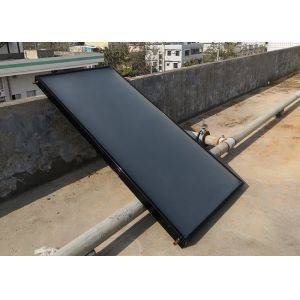

High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater

SolarShine A-Series flat plate collector is a very cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology.

A-Series flat plate solar collector is design for large central solar water heating projects and residential solar water heater in warm-climate regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.



SERIESA - Series
Model NumberA-2.0-78
Ext. Dimension(mm)2000 x 1000 x 78
Gross / Aperture area2.0 / 1.83 (M2)
Absorber CoatingSelective anodize oxidation coating
Optical Performance
of absorber coating
Absorption: >95% Emission: <16%
Efficiency coefficients
(Based on Aperture Area)
ŋa = 0.75 - 5.4Tm*
Absorber MaterialAll in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tubeCopper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity7PCS
Header ManifoldØ22 / L1060 /δ0.6mm
Fluid Capacity1.6L
Frame Casing/
Wall Thickness
Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity
25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k
Back Sheetδ0.4mm galvanized plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%

Sealing ProfileEPDM rubber stripe
Tested/Rated pressure1.2Mpa/0.6Mpa
Net. Weight (empty)31.5kg
Container Loading Qty
(20GP/40GP/40HQ)
165 / 340 / 360(PCS)
