    Abrasive Resistant Industrial Chemical Pumps with Mechanical Seal or Packing Seal

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : WD
    Certification : ISO9001
    Price : USD 500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 sets per month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Abrasive Resistant Industrial Chemical Pumps with Mechanical Seal or Packing Seal

    Abrasive Resistant Industrial Chemical Pumps with Mechanical Seal or Packing Seal


    Brief Introduction


    Nearly every catagory of process pump offered by Yongyi have models resistant to acids, akaline solutions, and solvents. Because of our wide product range and expertise in the field of fluid transfer, we are able to offer chemical pumps to cope with the most corrosive of liquids and those with high and varying viscousities.

    Some of the most common corrosive liquids are: caustic solutions, Ferric Chloride, Phosphoric Acid, Sulphuric Acid, Hydrochloric Acid, CIP fluids, corrosive dyes, radioactive fluids, Silver Nitrate.


    Features


    • Excellent performance, Reliable, High efficiency and low operating costs.

    • Suitable for the most demanding industrial applications.

    • Quick and easy installation, safe operation, easy maintenance and service.

    • Modular design minimize the spare parts inventory cost.

    • Extra heavy-duty shaft for low shaft deflection and long life of seal and bearings.


    Usage


    1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
    2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
    3). Paste products: fats, grease and etc..
    4). Cosmetic: face cosmetic, abluent, fixature, spice and so on.
    5). Medicine: extract, emulsion and pill plasm.
    6). Chemical industry: dyes, grease, dissolvant, resin and polymer.


    Technical Data


    Capacity:

    8 ~ 800 m³/h

    Head:

    10 ~ 90 m

    Maximal Efficiency:

    70%

    Diameter:

    200mm~470mm

    NPSH:

    1.4m~4.5m

    Allowed Max Particle Size:

    20 mm

    Seal Type:

    Mechanical seal/ dynamic seal/ packing seal

    RPM:

    1450 r/min


    Structure



    *1Locking screw*8Vice impeller chamber15Front bearing cap22Oil pan*29Sleeve
    2Gasket9O-ring*16Front bearing23Adjustment nut30Water seal ring
    *3Impeller nut*10Vice impeller17Bearing body24Adjustment screw31Filler
    4O-ring*11Packing chamber18Bearing bracket25Bearing body bracket32O-ring
    *5Impeller12O-ring*19Rear bearing*26axis*33keys
    *6Pump body13Rinse water nozzle20Rear bearing cover27Shield cover
    7O-ring14Water retaining plate21Key28Packing gland

    Production Procedures

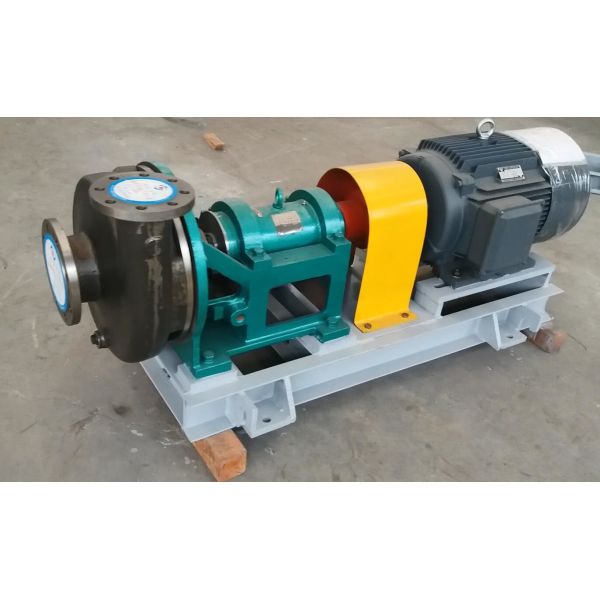

    Quality Abrasive Resistant  Industrial Chemical Pumps with Mechanical Seal or Packing Seal for sale
