    Waterproof 2 In 1 Solar Branch Connector Y Branch Connector For PV Solar Panel

    Ask Lasest Price
    Brand Name :
    Model Number : PV004-2T1
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 5000pairs per day
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Waterproof 2 In 1 Solar Branch Connector Y Branch Connector For PV Solar Panel


    P67 Waterproof 2 in 1 Y Branch Connector for Solar System and PV Solar Panel


    Description:


    1. 2 to 1 branch adaptor
    2. good price and fast delivery
    3. best service CE approved
    4. solar branch connector
    5. low power loss
    6. solar connector for solar power system
    7. all the connection made by double fixed connection
    8. with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover with convenient installation, strong commonality
    9. to meet the using requirement under bad outdoor condition


    Product Name:Y branch connector
    Cable length:35cm
    Working current:20A(4mm2), 30A(6mm2)
    Withstand voltage:DC1000V
    Contacting resistance:<2 mΩ
    Insulation resistance:> 500MΩ
    Suitable single core cable section:2.5mm2, 4mm2, 6mm2
    Cable outer diameter:Φ5mm -Φ 7mm
    Ambient temperature:-40 C~ + 105 C
    Protection class:IP67
    Safety class:II
    Shell material:PPO
    Contacting material:copper, tin plated
    Terminal connecting method:pressure welding

    Advantage:


    1. low power loss

    2. solarconnector for solar power system

    3. allthe connection made by double fixed connection

    4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

    5. withconvenient installation, strong commonality

    6. to meet the using requirement under bad outdoor condition


    Assembly Instructions


    1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

    2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

    3. The end product must provide protection from electric shock.

    4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

    5. Disconnected connectors should be protected from dirt and water with sealing caps.

    6. Plugged parts are watertight IP67


    FAQ:


    1. When can I get the quotation?

    Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

    2. How long about the delivery?

    Usually within 3-4 working days after payment, mainly according to the quantity.

    3. What's your payment terms?

    We accept T/T (bank transfer), L/C

    4. Do you accept the customized order?

    Yes, we do.

    5. Do you offer OEM & ODM?

    Yes. OEM & ODM are available.

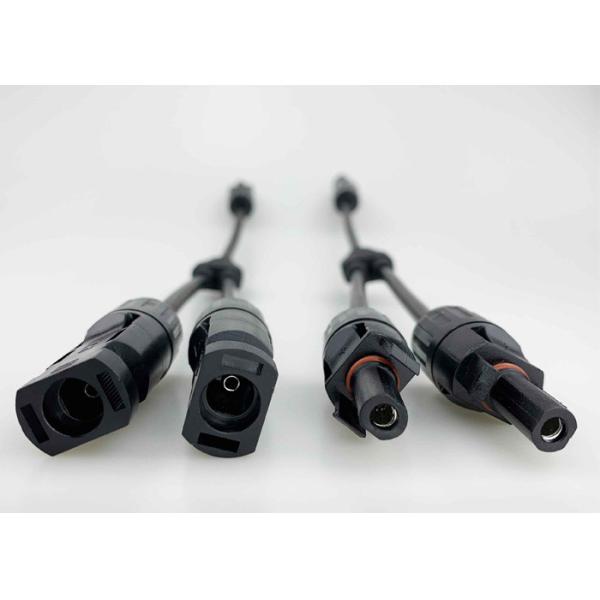

    Picture of Y branch connector


    Quality Waterproof 2 In 1 Solar Branch Connector Y Branch Connector For PV Solar Panel for sale
