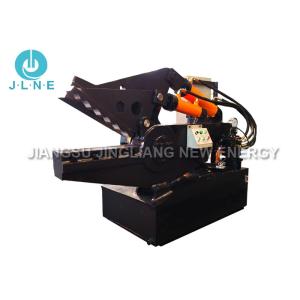

Automatic Hydraulic Alligator Shear For Scrap Metal Recycling
Industry
Hydraulic scrap metal shear is new developed model which used
advanced technology on worldwide level.This shear is suitable for
cold cutting (instead of flame cutting) different type waste metals
to short pieces which qualified to the furnace,it could improve the
work efficiency as well as save the labor and gas cutting cost.
In auto recycling system,this shear is widely used to cut the
catalytic converter,kinds of waste scraps,etc.
Features of Metal Cutting Shear:
1. suitable for metal recycling plants,automobiles and
diamantling,smelting casting line. It works for all
kinds of shape steel and all kinds of metal structures to cold cut.
2. The shearing machine is all made from steel.It’s vibration
treated roil to reduce internal stress to make machine stronger.
The drive is hydraulic,stable and reliable.
3. It is bottom structure.It can be fix without foundation bolt.For
the place where has no electric power,can
matching diesel engine.
4. The working blade length:600mm,700mm,800mm,1000mm,1200mm,1800mm
5. Shearing force divide into eight rank,which suitable for
different size requirements of the user to select.
Specifications of crocodile shears:
| Model | Shearing Force
(kn) | Press Force
(kn) | Shearing Speed
(times/min) | Max.blade Opening
(mm) | Blade Length
(mm) | Total Power
(kw) | Weight of Machine
(kg) | Overall Dimension
(mm) |
| Q08-63 | 630 | 105 | 14-25 | 320 | 600 | 7.5 | 1800 | 2100×800×1550 |
| Q08-100 | 1000 | 105 | 14-25 | 320 | 600 | 7.5 | 2200 | 2100×800×1550 |
| Q08-125 | 1250 | 105 | 12-25 | 320 | 600 | 11 | 3200 | 2300×1000×1650 |
| Q08-160A | 1600 | 165 | 11-25 | 340 | 600 | 15 | 3800 | 2600×1000×1800 |
| Q08-160B | 1600 | 165 | 11-25 | 380 | 700 | 15 | 4000 | 2700×1000×1800 |
| Q08-200 | 1909 | 196 | 10-20 | 420 | 800 | 18 | 4800 | 2660×930×1680 |
Description of automatic metal shearing machine:
1. This metal recycling equipment is mainly used in the waste
material recycling and processing industry. The small and
medium-sized steel mills cut the cold state of scrap metal such as
round steel, square steel, channel steel, angle steel, I-beam,
steel plate and steel pipe.
2. This hydraulic cutting machne is hydraulically driven. Compared
with the mechanical transmission shearing machine, it has small
volume, light weight, low inertia, low noise, smooth operation,
safe operation and easy to achieve overload protection.
3. This alligator shear has manual and automatic functions. The
operation control is convenient and simple, and the scissors mouth
can be cut and stopped at any position during the working process.
According to the size of the material to be cut, the size of the
cutting port can be arbitrarily controlled to achieve relatively
high work efficiency.
4. The equipment has reasonable technical parameters, wide
application range and low energy consumption. It is widely used in
scrap metal recycling and metal cutting of small and medium-sized
steel making plants to provide high-quality furnace materials for
smelting.
