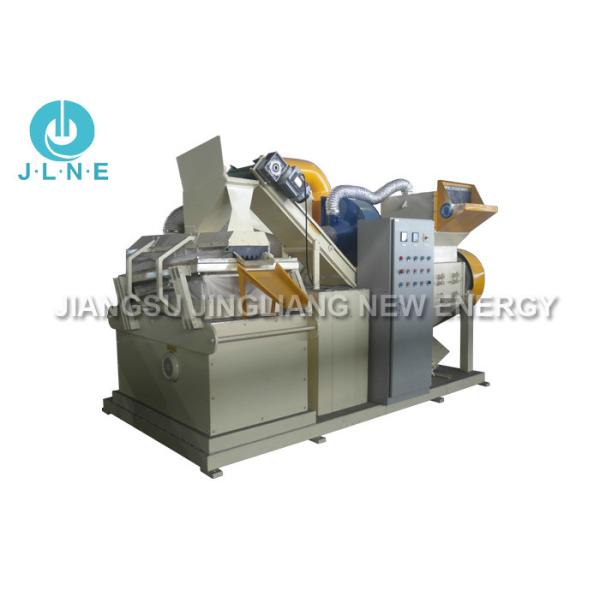

Scrap Aluminum Copper Cable Wire Shredder And Granulator Machine
1. Wide application:to recycle various kinds of copper wire and
cables with diameter between 0.1-20mm.
2. Reasonable design,compact structure,low power consumption and
stable performance.
3. Environment-friendly:it has solved the pollution caused by the
burning of the copper wires.With high copper recycling rate of
99.9% at least,the copper wire recycling machine is with excellent
dust removal performance because of the adoption of the fully
closed production model.
Aluminum Copper Cable Recycling Machine Application:
TF model scrap copper wire recycling machine is widely used to
process all kinds of waste wire, such as household electric wire,
computer wire and other various cable lines with diameter between
0.1-20mm which can not be striped by wire stripping machine. After
crushing and processing, the plastic and copper can be separated
completely at last. There is no dust and no secondary pollution. In
addition, the copper wire machine has an integrated structure,
which is convenient for installation, debugging and stable
operation of transportation performance.
1. All kinds of Copper cable and wire;
2. Aluminum cable and wire;
3. Auto wiring harnesses;
4. Communication cables;
5. Household electric wire;
6. Computer wire;
7. Other unclassified cables which cannot be processed by
wire-stripping machine.
Waste Cable Granulator Specifications:
| Model | Recycling capacity | Processed wire dia. | Total power | Voltage | Dimension | Weight |
| TF-600 | 300-320kg/h | 0.3-20mm | 52.36KW | As required | 4.3*1.95*2.4m | 3400kg |
Scrap copper cable recycling machine Working principle:
1. Put wires and cables into the crusher, in which they are crushed
and plastic sheath and copper separated completely. The length of
the crushed material is based on the mesh of the riddle: the bigger
the mesh is the longer the crushed material will be and the larger
the output will be. The mesh should be chosen in production
according to the type of the material.
2. The crushed material (mixture of copper granules and plastic
pieces) is conveyed to the separator by the conveyor, during which
procedure dust and part of plastic pieces of light weight(including
fiber, rope, or tapes, etc. mixed in the wires) are collected by
the pressure-reducing blower. The above opening of the pressure
reducing blower is connected with the dust collector opening in
which a dust collecting bag is used to prevent discharge of dust
for the purpose of environmental protection. Dust and part of
plastic pieces of light weight are collected in this bag and will
be discharged when the bag is full.
3. The separator is used for separating plastic pieces and copper
granules. According to the differences of the physical properties
and specific gravity between different materials, there is specific
gravity deviation under the forces of Aerodynamic and Vibration
friction. By adjusting the speed of material conveying and
amplitude parameters, copper granules (of larger specific gravity)
will move to the riddle bottom and move from down to up, and
plastic pieces (of smaller specific gravity) will move to the above
of copper granules and move from up to down, and in the end they
will both be discharged through different openings.
4. All the units are installed on the underbed to form a whole
structure. The machine is adjusted ready for production before
shipping, and the customer only need to connect it to the power
supply.
