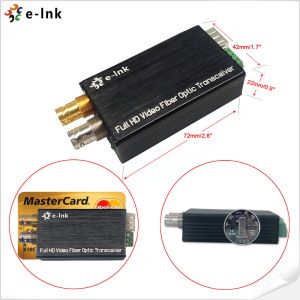

    Mini 3G/HD-SDI to Fiber Converter Extender with Tally function or RS485 Data

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-MHD-1V-20 Series
    Certification : CE FCC RoHS
    Price :
    Payment Terms : Western Union, MoneyGram, T/T, PayPal
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Mini 3G/HD-SDI to Fiber Converter Extender with Tally function or RS485 Data

    Mini-type 3G/HD-SDI to Fiber Converter with Tally function

    Model: LNK-MHD-1V & LNK-M3G-1V Series

    Overview


    Features


    Technical Indexes


    Formats3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input)
    Input1 x 3G/HD/SD-SDI on BNC
    Output1 x LC optical fiber
    1 x 3G/HD/SD-SDI loop-out on BNC
    Supported Resolution

    625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94;

    1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

    Power5-24 VDC
    Power Consumption2 W (Max.)
    Dimensions (LxWxH)80 x 40 x 20 (mm)
    Operating Temperature-20℃~+70℃

    TALLY Connection:


    Transmitter TALLY Signal Output Connection: (Can drive the LED indicator directly)

    TATBTC
    LED TypeLED -LED +LED-(TA reverse output)

    Receiver TALLY Signal Input Connection: (LED load type is only suitable for OC dirive LED - driver)

    TATBTC
    LED Load TypeLED -LED +
    Switching Value typeComNC/NO

    Ordering Information


    ItemDescription
    LNK-MHD-1V-20Mini-type HD-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
    LNK-M3G-1V-20Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
