Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration

    Buy cheap Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration from wholesalers

    Buy cheap Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration from wholesalers
    • Buy cheap Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration from wholesalers

    Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration

    Ask Lasest Price
    Brand Name : ST-200
    Model Number : JINZHOU SHITAN
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

    Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration

    On Sale Core Drilling Rig Available for Getechnical Sampling Exploration


    Product Description:

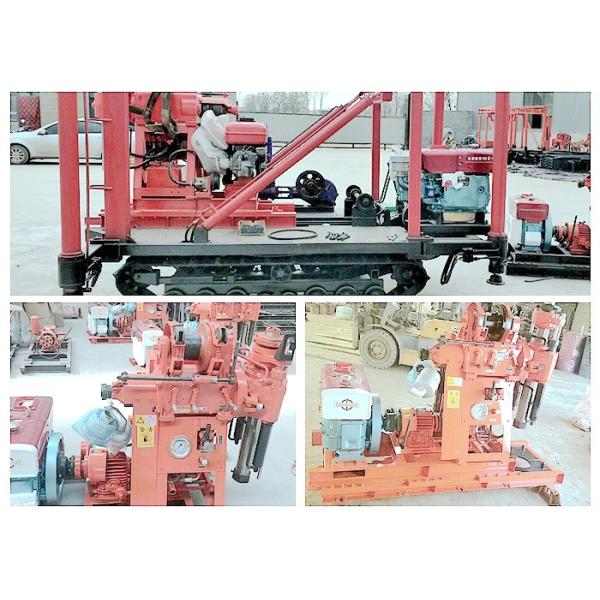

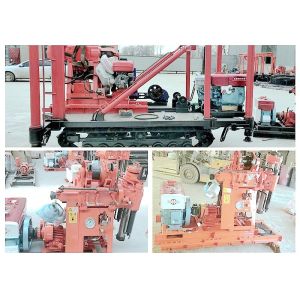

    ST-200 is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.


    Product Parameter:


    1. Rated drilling depth:200m,The deepest shall not exceed 220m.

    Rated opening diameter:200mm.

    Maximum opening diameter : 300mm.

    Drilling depth and drilling diameter shall be determined according to the formation conditions.
    2. The vertical speed (four steps):118,236,505,1010.r/rain
    3. Max output torque:1500N. m
    4. Maximum weight (a speed of single rope):17KN
    5. drill pipe diameter:42mm
    6. Borehole inclination:90~75°
    7. Rig overall dimensions·(L×B×H)1433×697×1273mm
    8. Rig weight:500kg(Transfer machines 620kg, transfer machine with pump 720kg)
    9. Engine model:S1115

    Quality Rotary Crawler Mounted Drill Rig For Getechnical Sampling Exploration for sale
