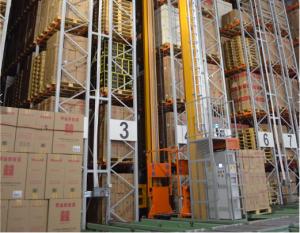

High Quality Metal AS/RS System Racking of Automatic Warehouse (
EBIL-ASRS )
Introduction
Automated Storage and Retrieval Systems (often referred to as ASRS
or AS/RS) refers to a computerized robotic system that automates
operations such as unloading, sorting, put-away, storage,
order-picking, staging and loading.
Systems typically consist of 4 main components: the storage rack,
the input/output system, the storage and retrieval (S/R) equipment,
and the computer management system.
It is a safe, fast and very convenience system with 100%
accessibility. The crane can go up to more than 30M. The exact
height and length can determine by capacity suitable for
mechanical, electronics, chemical, pharmaceutical, printing,
publishing, textile, securities business, food industry, and
transport services industry.
AS RS warehouse rack mainly consists of following parts:
1. Racking
Structural feature: AS/RS System are usually equipped with pallet
racking and drive-in racking, both of which are composite
structure. Steel panels and wooden panels are available for loading
with good capacity. Conveyors will do the loading and unloading job
under the instruction from the central computer. AS/RS System is
mainly used in the food, tobacco, electronic, mechanical and
armament industry.
2. Stacker
Structural feature: Double upright structure, steady and reliable,
vector frequency conversion drive and encoder position control,
mechanical and electronic safety devices to ensure safe using of
the system; All the way tracing technology by information
transferring; Electric components are imported from abroad;
Touching screen interface for easy operation; Making manual,
semiautomatic, automatic and linkage control come true; Used in
many situations by combining with other logistics equipment.
3. Conveying system
Structural feature: Conveying system is usually equipped in the
front or back of warehouse for conveying goods here and there,
bridging the procedures done by forklifts and stackers by using
rolling conveyor or chain conveyor and combining with lifts,
rotating devices and other equipments.
4. Controlling system
Structural feature: Communicating with WMS and ECS through OPC
agreement, PROFIBUS bus network, set up by Siemens S7-300
controller can operate all conveyors offline, doing conveying of
goods automatically.
Please refer to the attached drawing for details of conveying
system
5. WMS System
Hardwares of WMS System: Star network structure, network sever, RF
server, computers for management and monitor, RF base station and
RF terminal for in/out warehouse of goods.
Softwares of WMS System:
| Operating system | WINDOW 2000X SEVER |
| Data-base | MS SQL SEVER 2000X |
| Warehouse management software | WMS |
| Equipment controlling software | ECS |
| Bar code management software | RFS |
6. Other related equipment
Other related equipment include switching cart, rail cart, O/R
table, automatic guided vehicle, auto-picking system, electronic
label, pallet lift and so on.
Upright
Beam
Please provide information for quick quotation
1. Pallet Size (Length*Width*Loading Height in mm)
2. Layout or Dimension (Length*Width*Net Height in mm) of your
warehouse
3. Rack Size (Length*Width*Depth in mm) if you are available or we
shall design for you
4. How many bays and levels if available
5. Loading Capacity(kg) of each level or each pallet
