Customized Voltage Mechanical Parking Garage Back Cantilever Lift For Car Workshop

    Buy cheap Customized Voltage Mechanical Parking Garage Back Cantilever Lift For Car Workshop from wholesalers

    Buy cheap Customized Voltage Mechanical Parking Garage Back Cantilever Lift For Car Workshop from wholesalers
    • Buy cheap Customized Voltage Mechanical Parking Garage Back Cantilever Lift For Car Workshop from wholesalers

    Customized Voltage Mechanical Parking Garage Back Cantilever Lift For Car Workshop

    Ask Lasest Price
    Brand Name : JUNHV
    Model Number : JH-SP2L
    Certification : CE
    Price : Negotiable
    Supply Ability : 1000SET PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Customized Voltage Mechanical Parking Garage Back Cantilever Lift For Car Workshop

    Customizable voltage 12 months warranty Back Cantilever Lift Mechanical Parking Garage for car workshop


    Working principle:


    This is multi-column design equipment. The ground level can only slide right or left, the top level can only lift and the middle levels can both slide and lift. Except the top level, there's an empty space on each level that can slide right or left. Cars parked/unparked by the lifting of car pallets on top level, the sliding of car pallets on ground level and the lift and sliding of car pallets on middle levels. Parking space on ground level can park/unpark car directly. When parking/unparking car on middle level, the car pallets that underneath the parked/unparked car all slide right or left to leave an empty space and make the empty space just underneath the parked/unparked car. So the car pallet can reach to ground level, then the car can be parked or unparked.


    Features :


    1. The system structure is very flexible and can be arranged according to your site condition and requirements. 2. About awning design, can be designed according to your requirements, such as full awning type , part awning type and simple awning type and no awning type.
    3. Save land area and take full use of space, the parking quantity is about 5 times compared with normal plane parking lot. 4. Low equipment cost and maintenance cost.
    5. Lift smoothly and with low noise, convenient for car goes in or out.
    6. Comprehensive security protection system, such as safety anti-falling hook, mechanism detect people or car entering, car parking limit mechanism, interlock mechanism, emergency brake mechanism.
    7. Adopt PLC automatic control system, use button, IC card and remote control system, make operation very easy.




    Product packaging

    Packaging:

    Car lift Standard Export Package.

    Delivery :

    Usually it takes 3 weeks after receving your receipt payment .
    However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.


    Product Information:

    Suitale Parking CarsModelSmall CarMid-Size CarLarge CarOver Size Car
    Car Size Length*Width*Height (MM)≤4400×1750×1450≤4700×1800×1450≤5000×1850×1550≤5300×1900×1550
    Car Weight≤1300Kg≤1500Kg≤1700Kg≤2350Kg

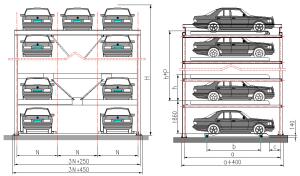

    Requirement Spacea(mm)4800510054005700
    b(mm)5100540057006000
    c(mm)5150545057506050
    d(mm)2100215022002250
    e(mm)1110113511601185
    f(mm)6850700071507300
    N(mm)2250230023502400
    Rated SpeedLift Speed4.1m/min4.1m/min4.1m/min3.7 m/min
    Sliding Speed8.9m/min8.9m/min8.9m/min8.9m/min
    Drive ModeHydraulic(lift);motor and chain(Sliding)
    Power3 Phase 5 Wire 380V 50HZ3 Phase 5 Wire 380V 50HZ3 Phase 5 Wire 380V 50HZ3 Phase 5 Wire 380V 50HZ
    Control ModeButton,IC Card and Remote Control SystemButton,IC Card and Remote Control SystemButton,IC Card and Remote Control SystemButton,IC Card and Remote Control System
    Surface TreatmentGalvanized and PaintingGalvanized and PaintingGalvanized and PaintingGalvanized and Painting
    Inner Width of Pallet(MM)1930198020302080
    Product display
