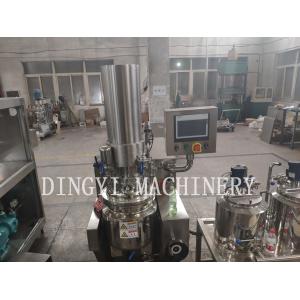

Dust Proof Vacuum Planetary Mixer With Hydraulic System Electronic Controller

Dust Proof Vacuum Planetary Mixer With Hydraulic System Electronic Controller

Vacuum Planetary Mixer introduction:

This vacuum homogeneous emulsifying machine is suitable for various type of ointment, honey products, shower gel, lotion or ointment, it is the cosmetics, pharmaceutical production enterprises laboratory indispensable experimental tool.

This equipment is a set of vacuum deaeration, mixing, homogenizing, heating, electric control and other functions in one, equipment is composed by the vacuum homogenizing emulsifying pot, vacuum system, a lifting system, water tank, oil tank, electric control system, operation platform. customer can choose steam heating or electrical heating for heating the tank. we use Panasonic or Schneider converter for speed adjustment.

Vacuum Planetary Mixer Use

Vacuum Planetary Mixer is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants .The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Vacuum emulsifying main machine:

· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

After finish one batch, customer can choose positive pressure or rotor pump for material out.

Face cream production processing as following:
Step 1: Prepare raw material
Step 2: Oil phase raw material in oil phase boiler heating and pre-mixing, and water phase raw material in water phase boiler heating and pre-mixing
Step 3:Self-suction oil phase and water phase material to main tank (heating, Homogeneous emulsion to emulsion phase (for example face cream )(in vacuum situation , will without foam )
Step 4: Cooling to 50-60degrees add additive, and then cooling to about 40degrees and discharge to storage tank.
Step 5: Storage about 24hours
Step 6: Filling, packing etc.

As a professional manufacturer and exporter, DingYi I/E Industrail Co., Ltd Engages in the research, design, manufacture and sale of various machines.

Our factory specializes in making kinds of pharmaceutical, cosmetic and food machinery, for instance, Vacuum emulsifying mixer, Suppository vacuum emulsifier, Toothpaste making machine, Tube filling and sealing machine, Bottom homogenizing cream mixer, Soft gel preparation system, Dry type granulator, Color mixing machine, CIP cleaning system, Stainless steel mixing and storage vessel, Gel storage tank, Online high-shear emulsifier, Sanitary rotor pump and centrifugal pump, Colloid mill, water and powder mixer, Belt conveyor.


Our company always contributes to produce products satisfying customers.

We are very pleased to cooperate with you to create our bright future.
