    10M 18T Heavy Duty Electric Hydraulic Scissor Lift Table with CE

    Ask Lasest Price
    Brand Name : SDLIFT Or OEM
    Model Number : SJG18-10
    Certification : CE ISO SGS
    Price : USD5800- USD14800 / UNIT
    Supply Ability : 1200 units per year
    Delivery Time : 30 days
    Payment Terms : T/T
    • Product Details
    • Company Profile

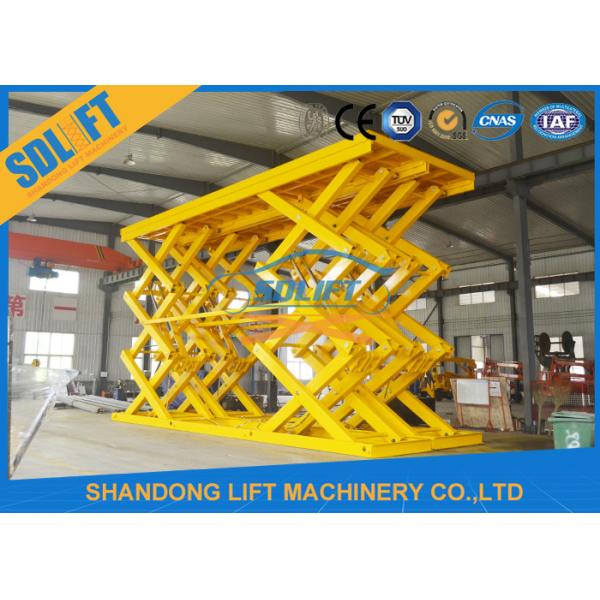

    10M 18T Heavy Duty Electric Hydraulic Scissor Lift Table with CE

    18T Heavy Duty Hydraulic Cargo Scissor Lift Heavy Truck Lifting Platform​:


    · Parameters:


    Load capacity: 18000kg

    Lift height: 10000mm

    Platform size: 12000mm x 4000mm

    Power: 380v/50hz/3ph/30kw


    · Configuration:


    1) Platform Material: rectangular tube + checkered anti-slip plate
    2) Support scissors: high strength Manganese Steel.
    3) Hydraulic system: 380V/30Kw or as your request
    4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
    5) Piston Rod: hard chromium plating surface.
    6) High-pressure oil pump: from Italy or Chinese famous brand.

    7) Hydraulic pipe: high pressure pipe with double expanded metal protected

    8) Hydraulic oil: summer 46#, winter 32#

    9) Controller: 1 control box below, 1 hand controller above platform


    · Service:

    1) All machines sold must be tested before shipment, 100% quality.
    2) 2 years warranty, with CE certification.
    3) 24 hours technical support by email, telephone or video online.
    4) User-friendly English manual for machine using and maintain.
    5) Spare parts will be offered for free during warranty.
    6) Professional design drawing can be designed and provided according to customer installation site.


    · The models we supplied for clients:


    MODEL

    LOAD CAPACITY

    PLATFORM SIZE

    LIFT HEIGHT

    PIT DEPTH

    POWER

    SJG3-2.5

    3T

    2m x 3m

    2.5m

    500mm

    220V, 240V, 380V or 400V

    SJG3-3

    3T

    5.2m x 2.6m

    3m

    750mm

    220V, 240V, 380V or 400V

    SJG3-5

    3T

    5.6m x 2.7m

    5m

    800mm

    220V, 240V, 380V or 400V

    SJG8-2.5

    8T

    6.5m x 4.5m

    2.5m

    750mm

    220V, 240V, 380V or 400V

    SJG12-3

    12T

    5.5m x 2.8m

    3m

    850mm

    220V, 240V, 380V or 400V

    SJG60-2.5

    60T

    8m x 2.2m

    2.5m

    950mm

    220V, 240V, 380V or 400V

    The Scissor Cargo Lift Hydraulic Scissor Lift can be customized as your detailed size.

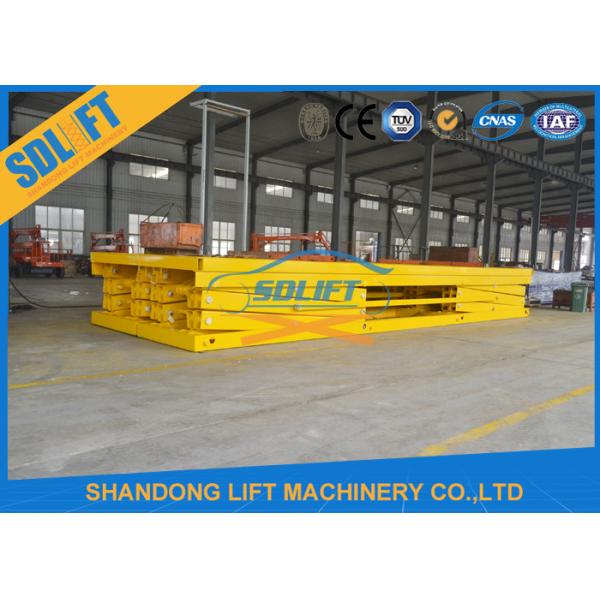

    · The production showing:





    · The customers visiting:



    Contact:


    Owen Li

    Cell/Whatsapp: +86-13969113583
