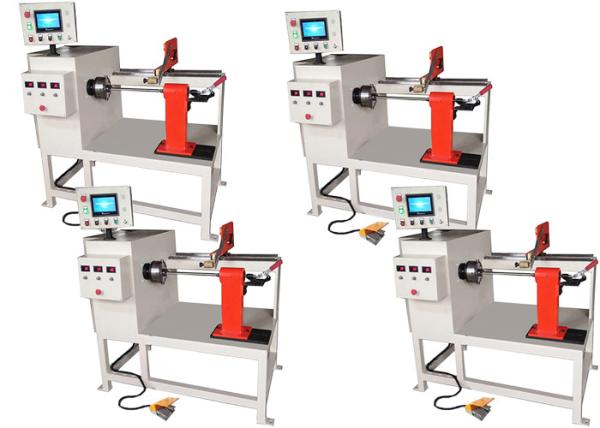

PLC Control System Small Coil Winder Machine For Transformer High Automation

PLC Control System Small Coil Winding Machine For Transformer , With Copper Wire

General Information

PLC Control System Small Coil Winding Machine For Transformer , With Copper Wire ZPX400 is a special equipment for winding flat or round copper or aluminium wire coil. The shape of the coils can be rectangular, circle and oval, and these coils can be used in transformer and other similar products. This machine can lay the wire automatically when winding. The wire guide is driven by one 750w servo motor, which assure the excellent stop and start behaviour. 1.5kw motor provides enough torque to wind the wire with the listed size range. Changing bigger power motor for big size wire if needed. Colored touch screen provides a user friendly interface for inputting the relevant parameters. The counter can count the number of turns and count reversibly. The foot pedal is used to control the machine to start and stop, and switch the rotating direction. This winding machine features slow starting, smooth running, high automation, and easy operation, etc.

Main Features

• Small volume
• Touch screen with user friendly interface
• Easy to operate. After inputting all of the necessary parameters, just need to press the foot pedal, the machine will wind automatically
• Stepless speed regulation
• Minimum 0.01 mm spread pitch
• 1.5kw power motor provides enough torque
• 0.75kw servo motor driven wire guide
• Dereeler with pneumatic tension
• Adjusting valve for pneumatic
• pressure gauges showing the pressure

Main Parameters

Typical standard specifications of ZPX400 are shown below, however these can be easily modified as requested.

Founded in 2011, Zhu Tang (Suzhou) Technology Co., Ltd. is located in Taicang City, Jiangsu Province, China, and is adjacent to Shanghai City. The company specializes in developing, manufacturing and selling transformer making equipment, reactor making equipment, and other similar products, such as foil winding machines, coil winding machines, iron core stacking and tilting platform and silicon iron cut to length line etc. , serves power industry and provides transformer manufacturers, reactor manufactures and other similar manufacturers with products and services. Upholding the concept of continuous innovation, the company creates the value for customers. The company invests 10% revenue for research and develop each year to improve the products and their performance. Now the company holds several patents. With a team of trained engineers and skilled technicians, the company provides different specifications of products to meet customers’ different needs, moreover, the company can design and manufacture the customized products according to customers’ requirements. Based on good quality and reasonable price of the products, the company obtains customer recognition and trust. Besides of many domestic customers, our customers are around the world, including Canada, Russia, Germany, France, South Korea, Vietnam, India, Singapore, and so on.

In 2019, the company established a branch, Hefei Zhutang Technology Co., Ltd, in Hefei City, Anhui Province.
