    Aluminium / Copper Wire Coil Winding Machine , Transformer Coil Winder Easy Operate

    Ask Lasest Price
    Brand Name : Zhutang
    Model Number : ZPX250
    Certification : SGS, CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Aluminium / Copper Wire Coil Winding Machine , Transformer Coil Winder Easy Operate

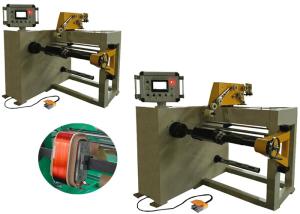

    Automatic Copper And Aluminium Wire Coil Winding Machine For Oil Transformer


    Description


    Automatic Copper And Aluminium Wire Coil Winding Machine For Oil Transformer ZPX250 adopts automatic wire laying technology, it also use tension technologies to wind wire coil automatically. The coil winding machine is a professional equipment for winding coil, these coil can be used in transformers, reactors, and similar products. The machine is provided with main motor, servo motor, VFD, and so on. The control system is based on PLC, this machine can run automatically as per the preset program, and this machine can save more than fifty winding programs. When winding the same specifications of coil, just calling the program, it is not necessary to input te parameters into the machine again, which significantly improve the working performance. This machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.


    Main Components


    1. Main steel frame

    2. Winding unit

    3. Automatic wire arrangement unit

    4. Insulation dereeler

    5. Electronic cabinet

    6. Pneumatic system


    Technical Parameters


    Typical standard specifications of ZPX250 are shown below, however these can be easily modified as requested.


    Center Height:900mm
    Tailstock:Live center
    Main Motor Power:2.2kw
    Winding Speed:0-120 rpm
    Speed Regulation:stepless speed regulation
    Control:PLC
    Round Wire Diameter:0.3-4.0mm
    Flat Wire:2x8mm
    Max Winding Height:250mm
    Max Rotation Diameter:400mm
    Automatic Wire Laying Function:Min. Spread Pitch: 0.01mm
    Basic Function:5-digit counting, turn number preset by segments, total turn number preset, reversible counting, and power off memory, etc.
    Counting Turn Range:0 - 9999.9
    Number of Saved Winding Programs:more than 50 pcs
    Machine Weight:500kg
    Machine Dimension(L*W*H):1200*900*1500mm
