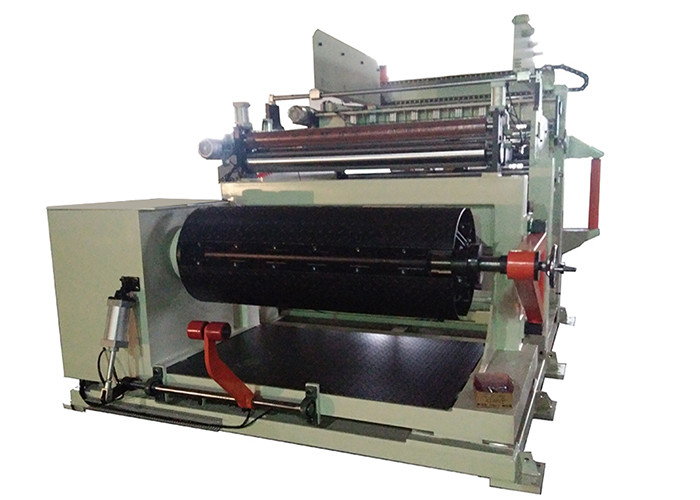

    Buy cheap Single Layer Foil Winding Machine , Cast Resin Transformer Coil Winding Machine from wholesalers

    Buy cheap Single Layer Foil Winding Machine , Cast Resin Transformer Coil Winding Machine from wholesalers
    • Buy cheap Single Layer Foil Winding Machine , Cast Resin Transformer Coil Winding Machine from wholesalers

    Single Layer Foil Winding Machine , Cast Resin Transformer Coil Winding Machine

    Ask Lasest Price
    Brand Name : Zhutang
    Model Number : BRJ1400
    Certification : Main parts with CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : 40 - 45days
    • Product Details
    • Company Profile

    Single Layer Foil Winding Machine , Cast Resin Transformer Coil Winding Machine

    15kw Motor Driven Single Layer Foil Winding Machine For Cast Resin Transformer


    Description


    15kw Motor Driven Single Layer Foil Winding Machine For Cast Resin Transformer BRJ1400 is developed and produced by us, which are mainly used in the electrical engineering, especially in transformer and reactor construction, mainly due to their compactness, high performance and reliability. Our foil winding machines have a very high quality of winding, and there are various configurations possible which allow a wide range of transformer sizes and number of strips as required. It can handle one or two layers of conductor strips and one or two layers of insulation paper. Moreover, we can add various modifications, automatic functions to this kind of winding machines according to your requirements.


    Performance Features

    • continuously variable drive
    • control system based on PLC
    • TIG welding device
    • winding shaft with flange
    • rectifying deflection
    • pneumatic brakes
    • pneumatic winding mandrel for insulation
    • pressure roller for winding mandrel
    • hold-down device

    Main Parameters


    ItemBRJ1400
    Axial Length (foil width):350-1,400mm
    Finished Coil OD.:≤1,000mm
    Conductor Material OD.:≤1,000mm
    Conductor Material ID.:500mm
    Foil Decoiler Number:1 pc
    Insulation Decoiler Number:2 pcs
    Winding Power:15KW
    Max. Winding Speed:18 rpm
    Edge Alignment System:Photoelectric sensing
    Counting Turns Range:0 - 9999.9

    Packing & Delivering
