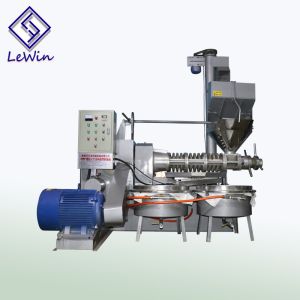

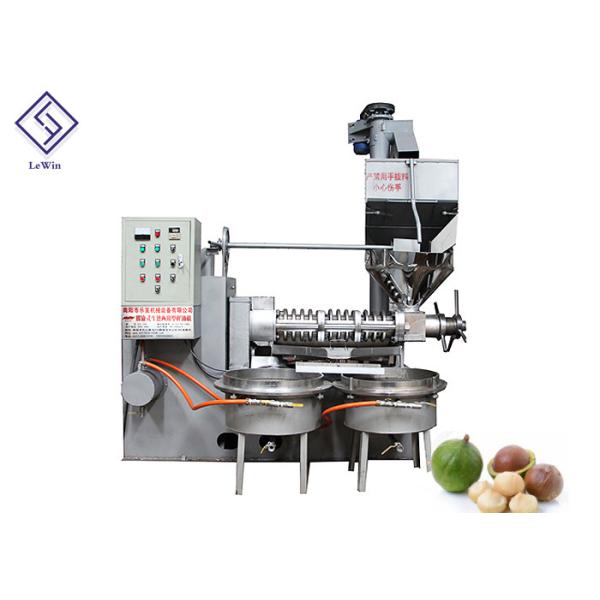

High oil rate industrial oil processing machine with adjustable
temperature
Production intruduction
Principle and Structure:
Oil press machine is to separate the oil from oil bearing materials
by the pressing power which comes from the change of chamber
volume, drive from screw worm, resistance of curve teeth at press
rings and extrusion friction between oil materials. Under the big
pressure created in press chamber, the oil can be discharged from
gap of press bars and oil trough of press rings. Either big scale
and small scale of oil press machine, they have similar theories in
screw expeller pressing. Because the screw type oil press machine
is mainly used by extrusion theory, so it is also called as oil
extruder or oil extrusion process.
Range of application
Suitable for rapeseed, peanut, soybean, sunflower, rapeseed,
sesame, sesame seed, tea seed, walnut, olive, corn germ, rice bran,
tea seed, safflower seed, seeds of hippophae rhamnoides and so on.
Paramter
Model | Dimension (mm) | Weight | Power | Vacuum power | Rotary speed | Capacity(kg/h) |
|---|
| 6YL-120 | 2000*1600*2700 | 1500kg | 15kw | 1.1kw | 100-130 | 120-160 |
| 6YL-130 | 2150*1600*2700 | 1600kg | 22kw | 1.1kw | 100-130 | 180-300 |
| 6YL-130(A) | 2600*1600*2700 | 1650kg | 18.5kw | 1.1kw | 100-130 | 160-280 |
| 6YL-150 | 2550*1800*2700 | 1800kg | 30kw | 2.2kw | 100-130 | 220-450 |
| 6YL-160 | 2650*1900*2700 | 1900kg | 30kw | 2.2kw | 100-130 | 300-600 |
| 6YL-180 | 2700*2000*2700 | 1980kg | 37kw | 2.2kw | 100-130 | 400-750 |
1. We have different models for you to choose.
2. According to your requirements, we can also customize for you.
Workflow(hot press)
Our company
We are the manufacture of oil press equipment and we have 20 years
experience for oil machine. We have our own factory and
professional engineer, so we can gurantee the quality of the oil
press machine, if there are any other questions about our oil
pressing machine, we can give you a best solution. We also have our
own professional sales and service team, we can make the different
solutions according to your requests. In addition, We are factory
direct sale, cut out the middleman, thus makes the price lowest for
our customers. so if you need, please contact us freely!
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after
receipt the deposit. Also we can offer other shipping method, such
as by air, by express, by train and so on. We have many shipping
agent to meet different request for the shipping.
Our service
1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee
period, the seller will provide maintenance free service.(Except
the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell
party will solve by phone and email, if necessary the engineer will
go to solve the problem on the spot, the buyer should pay daily
salary $100, also pay technical visa cost, round trip tickets,
rooms and meals.
3). During the quality guarantee period, if it is the quality
problem (except easily damaged parts), the cost for maintenance and
replace will be borne by sellers.
4). During guarantee period, the seller will provide service with
compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee
period.
