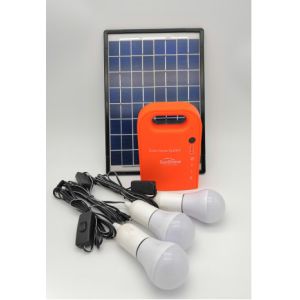

20W LED Specification for lighting system Power storage White light
The light bulb:
1, Luminous color:White light
2, LEDbulb with 5M wire
3, LED bulbs come with switches
4, LED brightness: greater than 150Lm
Solar panel power parameters:
Maximum output power: 20W
The open circuit voltage: 16.8V
Working voltage: 15.12V
Short circuit current: 1.32A
Working current: 1.19A
Size: 338×435×17mm
Control system:
1, Charge and discharge management chip of lithium battery is
loaded to strictly control overcharge voltage and overdischarge
voltage of lithium battery.
2, LED light is displayed on the panel, which can intuitively
observe the lithium battery power.
3, LED bulb full power work, when the battery voltage decreased,
brightness will gradually decline, know the critical point of over
discharge voltage, the system will automatically shut down, such as
the next charging activation.
4, USB socket output voltage is 5V, output current: 1A, for
ordinary mobile phones, charging bao, other small electronic
devices with USB plug.
5, Button switch above the panel, transportation, collection must
be in a closed state, open the switch LED display light will be
lit.Close the switch is to cut off the battery and the circuit
between the connection, to avoid the transport and collection of
battery consumption of electricity.
