SA7117-34050 14528735 Travel Gearbox For Excavator EC240 EC240B
Product Description
| Appliion | Excavator |
| Part name | Excavator travel gearbox |
| Part number | SA7117-34050 14528735 |
| Model | EC240 EC240B |
| MOQ | 1PC |
| Warranty6 | months |
| Payment term | T/T, Western union, PayPal |
| Delivery | 1 days after the payment received |
| Shipment | by sea, by air, by express or as required |
The information need to check:The part number and the picture of
your used gearbox.
For the common type,we can check the parts directly.
We have been the factory agent this year,so the price of our parts
will be better than other supplier.
Our products are developed according to the original product
parameters,It's perfectly replaceable.That means you can buy a
replacement product for less money
Our advantages:
1 . Strong part number system
If you can provide the right model and part number, we can check
with the informations you sent me and supply the right product.
2 . Professional and experienced salesperson.
Our founder has been into this field for more than 7 years , with
rich experiences.We will conduct professional knowledge training
and assessment for sales staff every month .
3 . Strict and complete company rules.
We will try our best to meet customer’s delivery time . Before
delivery, we must verify the part number or pictures of products
one by one , to make sure that customers can receive high-quality
and right-quantity goods .
4 . Good management system.
No matter how big or small order , as long as customers place the
order , we will provide exporting service free for charge .
5 . Good service attitude.
If the customer has any questions about the product , In our
receiving and knowing the situation , we will help the customer to
solve the problem in the first place.As long as customers’
requirements are reasonable , we will endeavour to make them
satisfied .

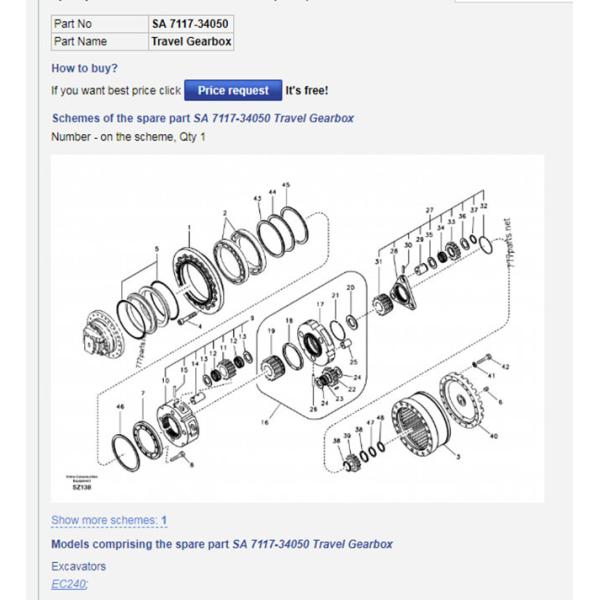

EC240 Travel gearbox explosive view
Part number system
| # | Part No | Part Name | Qty. |
| DE16F001 | DE16F002 |
| SA 7117-34050 | Travel Gearbox | 1 | 1 |
| 1 | SA 7117-34100 | Housing more | 1 | 1 |
| 2 | SA 7117-34110 | Bearing more | 2 | 2 |
| 3 | SA 7117-34120 | Gear | 1 | 1 |
| 4 | SA 9016-21818 | Bolt | 20 | 20 |
| 5 | SA 7117-34130 | Seal more | 1 | 1 |
| 6 | SA 9415-43042 | Plug more | 3 | 3 |
| 7 | SA 7117-34190 | Retainer | 1 | 1 |
| 8 | VOE 9011-11206 | Screw | 12 | 12 |
| 9 | SA 7117-34200 | Carrier | 1 | 1 |
| 10 | SA 7117-34210 | Carrier | 1 | 1 |
| 11 | SA 7117-34220 | Planetary Gear | 4 | 4 |
| 12 | SA 7117-34230 | Needle Bearing | 8 | 8 |
| 13 | SA 7117-34240 | Washer | 8 | 8 |
| 14 | SA 7117-34250 | Pin | 4 | 4 |
| 15 | SA 9325-08016 | Spring Pin | 4 | 4 |
| 16 | SA 7117-34260 | Carrier more | 1 | 1 |
| 17 | SA 7117-34270 | Carrier more | 1 | 1 |
| 18 | SA 1036-00310 | Ring | 1 | 1 |
| 19 | SA 7117-34280 | Gear | 1 | 1 |
| 20 | SA 1036-00300 | Ring | 1 | 1 |
| 21 | SA 7117-34290 | Ring | 1 | 1 |
| 22 | SA 7117-34300 | Planetary Gear | 3 | 3 |
| 23 | SA 7117-34310 | Needle Bearing | 3 | 3 |
| 24 | SA 7117-34320 | Washer | 6 | 6 |
| 25 | SA 7117-34330 | Pin | 3 | 3 |
| 26 | SA 9325-06012 | Spring Pin | 3 | 3 |
| 27 | SA 7117-34340 | Carrier | 1 | 1 |
| 28 | SA 7117-34350 | Carrier | 1 | 1 |
| 29 | SA 7117-34370 | Pin | 3 | 3 |
| 30 | SA 9325-06012 | Spring Pin | 3 | 3 |
| 31 | SA 7117-34360 | Gear | 1 | 1 |
| 32 | SA 7117-34440 | Ring | 1 | 1 |
| 33 | SA 7117-34420 | Planetary Gear | 3 | 3 |
| 34 | SA 7117-34380 | Needle Bearing | 3 | 3 |
| 35 | SA 7117-34390 | Washer | 3 | 3 |
| 36 | SA 7117-34400 | Washer | 3 | 3 |
| 37 | SA 9541-01034 | Ring | 3 | 3 |
| 38 | SA 1036-00290 | Ring | 2 | 2 |
| 39 | SA 7117-34430 | Gear | 1 | 1 |
| 40 | SA 7117-34410 | Cover more | 1 | 1 |
| 41 | VOE 9213-10000 | Spring Washer | 16 | 16 |
| 42 | SA 9011-11007 | Bolt more | 16 | 16 |
| 43 | SA 7117-34140 | Shim | 1 | 1 |
| 0.1t |
| 44 | SA 7117-34150 | Shim | 1 | 1 |
| 0.3t |
| 45 | SA 7117-34160 | Shim | 1 | 1 |
| 0.5t |
| 46 | SA 7117-34170 | Shim | 1 | 1 |
| 1.0t |
| 47 | SA 1036-00450 | Shim more | 1 | 1 |
| 48 | SA 1036-00460 | Shim more | 1 | 1 |
FAQ
1 . If I only know the excavator model, but can not offer parts
No., what should I do ?
If possible, you can send us pictures of old products, nameplate or
the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine
parts we don't have the warranty of it,but just can make sure it is
100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within
24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if
you really found something wrong ,please provide pictures for us
and we will check. After it is confirmed, please return to us , we
will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox ,
travel gearbox , swing motor , hydraulic parts . If you need any
parts for crawler excavator , you can ask us too . We will try our
best to meet your requirement.
