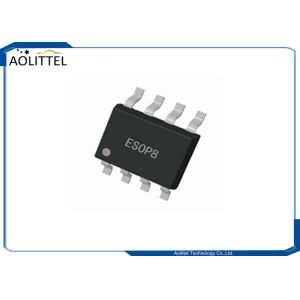

    ESOP-8 Constant Power Linear LED Driver Chip F7111 F7112 ODM Solutions With PWM Dimming Function

    Ask Lasest Price
    Brand Name : AOLITTEL
    Model Number : F7111 F7112
    Price : Contact our sales
    Payment Terms : T/T, Western Union
    Supply Ability : 500,000,0000PCS/Month
    Delivery Time : 2 Weeks
    • Product Details
    • Company Profile

    ESOP-8 Constant Power Linear LED Driver Chip F7111 F7112 ODM Solutions With PWM Dimming Function


    ESOP-8 Constant Power Linear LED Driver Chip F7111 F7112 ODM Solutions With PWM Dimming Function


    Main Features


    Internal integrated 500V high voltage power device

    LED current can be controlled by resistor programming 5-100mA

    Input voltage 110V/220V

    Constant power temperature foldback function

    CS open circuit protection

    Can be used in parallel to provide current capability

    Available in ESOP-8 package

    Support PWM dimming



    Application


    Suitable for filament lamp, bulb lamp, down lamp, corn lamp, LED fluorescent lamp T5/T8/T10 and other LED size power integrated lamps


    Example circuits


    Simple F7111 F7112 high and low PFC less than 12W circuit

    Simple F7111 F7112 high and low PFC PWM dimming circuit


    About us



    F Linear Series Chip Selection Table


    NO.P/NFunction & FeaturesMOSFETI(mA)LED VF valuePackage
    1F5111Constant current temperature reentry, can design high P ripple and low P ripple free, can be used in parallel with high powerInternal60120/252VSOT-89
    2F5112100TP-252
    3F7112Constant power, temperature foldback, PWM dimming, high and low PFC100ESOP-8
    4F7110High-power linear drive, analog DC dimming, temperature foldback, voltage protection, can be used to design full-voltage operation modeExternal350SOP-8
    5F7722SCR dimming, can design flat panel lights, bulb lamps, filament lamps E14, E27 and other 12W thyristor dimmingInternal100ESOP-8
    6F75221.VF half-pressure design, input width (160-270VAC) work 2.110/220VAC high P ripple-free design100100-150V
    7F25521. With F7112 full voltage 12W design 2.VF half voltage rippleless design 3.110/220VAC high P ripple free design100120-252PDFN-8
    8F2722/1Constant power type can be used in parallel100ESOP-8

    F Linear Series Chip Matching Selection Table


    NO.P/NFunction&FeaturesMOSFETI(mA)LED VF valuePackage
    13*F7112Full voltage lamps less than 15W, constant power, temperature reentryInternal60-100126/126ESOP-8
    23*F7110High power full voltage constant power high voltage linear schemeExternal350126/126ESOP-8
    3F7110+F5111/2High-power linear solution that meets certification requirementsExternal350252SOP-8+TO-252
    4F7111/2+F2552Full voltage lamps less than 10W, no constant power, temperature reentryInternal60-100126/126PDFN+ESOP+8
