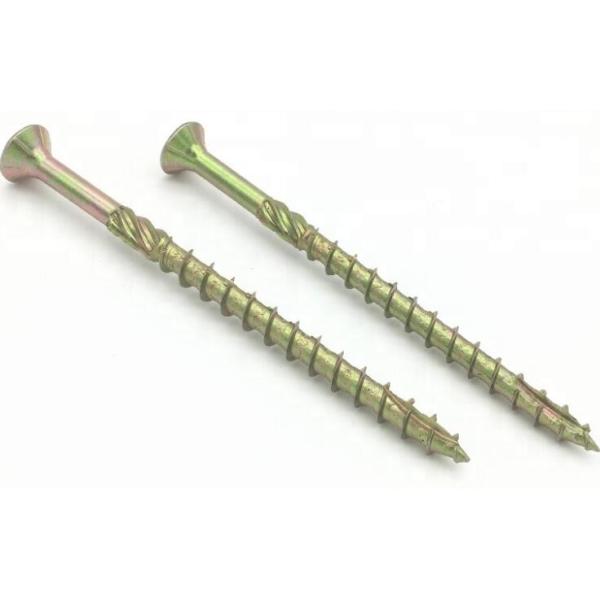

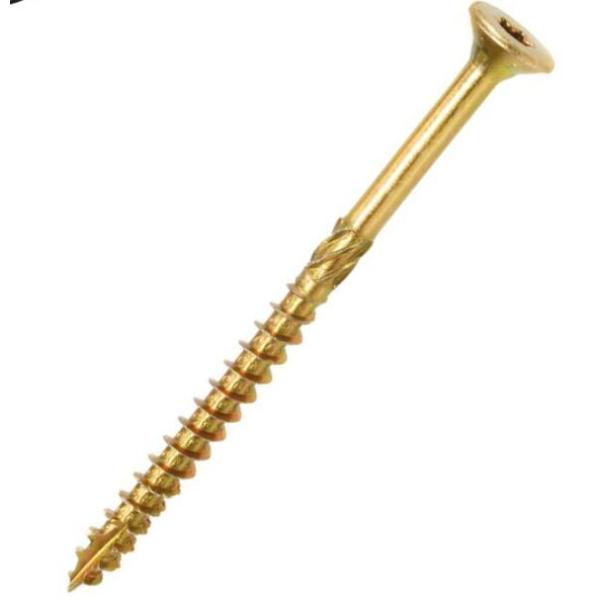

TROX Drive CSK head with Ribs Chipboard Screw , Partical thread ,
Zinc plated Construction Screw
| Dimension (mm) | Size of the recess | Packing (pcs.) | Weight (kg/100pcs) |
| 6x40 | TROX30 | 100 | 0,52 |
| 6x50 | TROX30 | 100 | 0,63 |
| 6x60 | TROX30 | 100 | 0,74 |
| 6x70 | TROX30 | 100 | 0,86 |
| 6x80 | TROX30 | 100 | 0,99 |
| 6x90 | TROX30 | 100 | 1,08 |
| 6x100 | TROX30 | 100 | 1,20 |
| 6x120 | TROX30 | 100 | 1,40 |
| 6x140 | TROX30 | 100 | 1,60 |
| 6x160 | TROX30 | 100 | 1,87 |
| 6x180 | TROX30 | 100 | 2,07 |
| 6x200 | TROX30 | 100 | 2,32 |
| 6x220 | TROX30 | 100 | 2,56 |
| 6x240 | TROX30 | 100 | 2,75 |
| 6x260 | TROX30 | 100 | 2,98 |
| 6x280 | TROX30 | 100 | 3,21 |
| 6x300 | TROX30 | 100 | 3,44 |
| 8x80 | TROX40 | 50 | 1,80 |
| 8x90 | TROX40 | 50 | 2,00 |
| 8x100 | TROX40 | 50 | 2,20 |
| 8x120 | TROX40 | 50 | 2,60 |
| 8x140 | TROX40 | 50 | 3,00 |
| 8x160 | TROX40 | 50 | 3,40 |
| 8x180 | TROX40 | 50 | 3,80 |
| 8x200 | TROX40 | 50 | 4,20 |
| 8x220 | TROX40 | 50 | 4,60 |
| 8x240 | TROX40 | 50 | 5,00 |
| 8x260 | TROX40 | 50 | 5,40 |
| 8x280 | TROX40 | 50 | 5,80 |
| 8x300 | TROX40 | 50 | 6,20 |
| 8x320 | TROX40 | 50 | 6,70 |
| 8x340 | TROX40 | 50 | 7,20 |
| 8x360 | TROX40 | 50 | 7,60 |
| 8x380 | TROX40 | 50 | 8,00 |
| 8x400 | TROX40 | 50 | 8,48 |
The Great screws for barns, pole buildings, sheds, wood fences,
docks, airplane hangers, and much more! the self-drilling tip
allows you to apply less torque and still drive these huge lags
home. The star drive torx heads allow you to drive this lag screw
with much less downward pressure than otherwise would be needed
· No need to pre-drill
· Type 17 slash point to reduce torque and the likelihood of the
timber splitting when inserted close to the edge
· Reinforced countersunk neck provides holding power.
- Improved countersinking from 6 angled lobes.
· Sharp Point for easier penetration into all wood types
· The molecular lubrication to increase insertion speed
· Yellow zinc surface threatment for the interior and exterior applications.
· Deep single thread to provide secure fixing with high pull-out
resistance
· ACQ (Treated Lumber) Compatible
· High Quality Steel-Heat Treated
· Deep, Wide, Sharp Threads Provide Maximum Holding Power.
· Torx Head for Easy Installation
Question & Answer
1. Payment : T/T (30% T/T in advance and balance 70% against copy of B/L)
L/C at sight
2. Lead Time : If have stock , can be packing and ship within 10-15 days ,
If not have stock , usually take 25-30 days to produce one
container order .
3. Free Sample : For standard item , we can supply the samples free . courier cost
by the buyer.
For nonstandard item , we will quote the mould charge ineed, but
the mould charge can be return if mass order released .
4. OEM : We Can produce the drawing according to your drawing or samples
, also can packing the products as customer's request with LOGO and
company information on it
5. How to place a order :
Send inquiry -------quotation --------Confirm order (price ,lead
time , technical detail with drawing and payment ) ---------pay
deposit -------Start to produce after got deposit ---------sample
approve (if need) ------------ass produce -----send picture of
packing for confirm------Marrange shippment ---------send copy of
B/L -------------Pay balance payment ----------send the documents
for clearance ----------feedback
6. Anyother question , welcome to contact us anytime .
