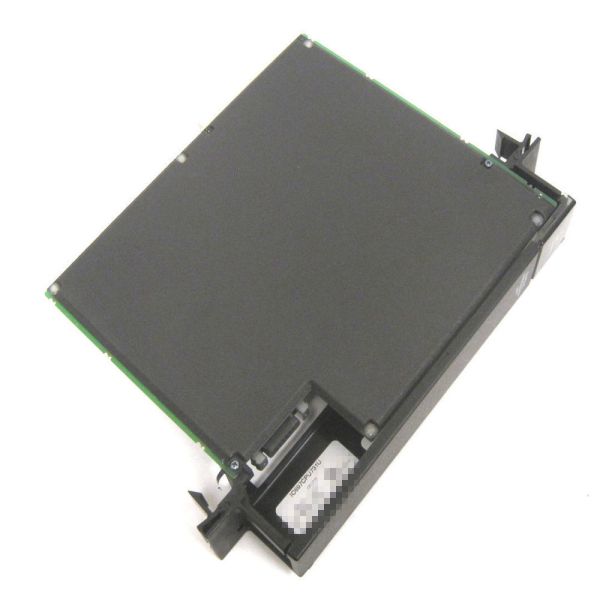

0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic

    Buy cheap 0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic from wholesalers

    Buy cheap 0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic from wholesalers
    • Buy cheap 0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic from wholesalers
    • Buy cheap 0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic from wholesalers

    0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic

    Ask Lasest Price
    Brand Name : GE
    Model Number : IC200MDL744
    Price : negotiable
    Payment Terms : T/T
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic

    0 .5 A per point (2 groups of 16) 32 points IC200MDL744 GE VersaMax Discrete Output Module, 5/12/24 VDC Negative Logic


    IC200MDL742IC200MDL743IC200MDL744
    Product NameVersaMax Discrete Output Module,
    24 VDC Positive Logic 0 .5A with
    ESCP, 32 points    		VersaMax Discrete Output Module,
    5/12/24 VDC Negative Logic, 0 .5 A per
    point (1 group of 16) 16 points    		VersaMax Discrete Output Module,
    5/12/24 VDC Negative Logic, 0 .5 A per
    point (2 groups of 16) 32 points
    Lifecycle StatusActiveActiveActive
    Output Voltage18-30 VDC, 24 VDC nominal5/12/24 VDC5/12/24 VDC
    Number of Points3216 (1 group of 16)32 (2 groups of 16)
    Channel to Channel IsolationNoNoNo
    Load Current per Point0 .5 A per point0 .5 A per point0 .5 A per point
    Input and Output Response
    Time- On/Off (ms)    		0 .5/0 .50 .2/1 .00 .2/1 .0
    ProtectionShort circuit protection, overcurrent
    protection, free-wheeling diodes
    (each output)    		No internal fuseNo internal fuse
    Points per Common2 groups of 161 group of 162 groups of 16
    External Power Supply18-30 VDC, 24 VDC nominal4 .75 to 5 .25 VDC, 5 VDC nominal
    for 5 VDC-TTL mode; 10 .2 to 30 VDC,
    12/24 VDC nominal for 12/24 VDC mode    		4 .75 to 5 .25 VDC, 5 VDC nominal
    for 5 VDC-TTL mode; 10 .2 to 30 VDC,
    12/24 VDC nominal for 12/24 VDC mode
    Load Current0 .5 A at 30 VDC maximum (resistive);
    2 .0 A inrush maximum for 100 ms    		25 mA maximum for 5 VDC-TTL mode,
    0 .5 A at 30 VDC maximum,
    2 .0 A inrush maximum for 100 ms
    for 12/24 VDC mode    		25 mA maximum for 5 VDC-TTL mode,
    0 .5 A at 30 VDC maximum,
    2 .0 A inrush maximum for 100 ms
    for 12/24 VDC mode
    5V Backplane Current
    Consumption (mA)    		150 maximum70 maximum140 maximum
    LED IndicatorsOne LED per point shows individual
    point ON/OFF state (logic side) .
    FLD PWR LED indicates field power is
    present . OK LED indicates backplane
    power is present .    		One LED per point shows individual
    point ON/OFF state (logic side) .
    FLD PWR LED indicates field power is
    present . OK LED indicates backplane
    power is present .    		One LED per point shows individual
    point ON/OFF state (logic side) .
    FLD PWR LED indicates field power is
    present . OK LED indicates backplane
    power is present .
    Dimensions (W x H x D)110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x
    50 mm (1 .956 in), not including the
    height of the carrier or the
    mating connectors    		110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x
    50 mm (1 .956 in), not including the
    height of the carrier or the
    mating connectors    		110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x
    50 mm (1 .956 in), not including the
    height of the carrier or the
    mating connectors

    Discrete Output Modules


    Discrete output modules send control signals to devices such as contactors, indicator lamps, and
    interposing relays that can also have two states . Modules require a carrier base (IC200CHSxxx) .
