Input Current 10-1000A Closed Loop Hall Effect Sensor Low Current
Hall Effect Sensor

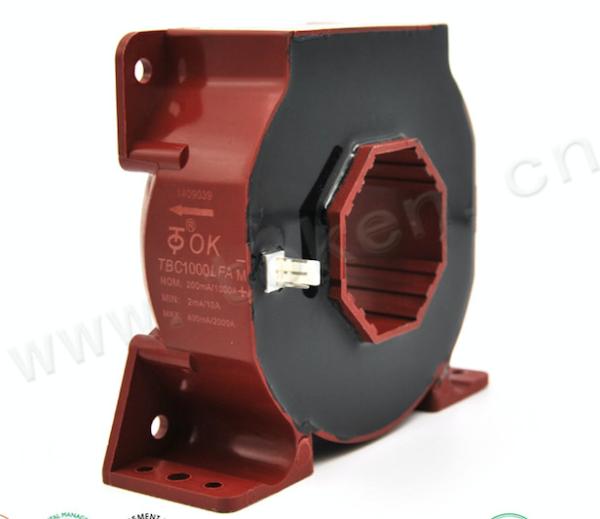

TBC1000LF high precision Closed Loop Hall Effect Current Sensor
The TBC1000LF current sensor is a closed loop device based on the
measuring principle of the hall effect and null balance method
,with a galvanic isolation between primary and secondary circuit,
the size of primary not affect test precision, no matter the
location of primary in the hole of current sensor, It can really
measure resolution 1000:1 and it uses for precision measurement of
DC, AC and pulse current.
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
Electrical data(Ta=25℃±5℃)
model
Parameter | TBC1000LFA |
Unit |
| Rated input Ipn) | 10-1000 | A |
| Measure range(Ip) | 2000 | A |
| coil resister | @ 85℃ 48 | Ω |
| Measure resister | with±15V @±1000Amax 0(min) 20(max) | Ω |
| with±15V @±1200Amax 0(min) 7.5(max) | Ω |
| with±24V @±1000Amax 0(min) 65(max) | Ω |
| with±24V @±2000Amax 0(min) 7.5(max) | Ω |
| Turns ratio(Np/Ns) | 1:5000 | |
| Rated output (Isn) | 2±0.1%FS(10A), 200±0.1%FS(1000A) | mA |
| Supply voltage | ±15～±24 | V |
| Power consumption | ≤20+IpX(Np/Ns) | mA |
| Zero offset | @Ip=0 ≤±0.2 | mA |
| Offset drift | @ -40℃～85℃ ≤±0.5 | mA |
| Response time | @100A/μS,10%-90% ＜1 | µs |
| Linearity | @Ip=0-±Ipn ≤0.05 | %FS |
| Galvanic isolation | @ 50HZ, AC, 1min 6 | KV |
| di/dt accurately followed | ＞100 | A/µs |
| Bandwidth | @ -3dB DC…150 | KHz |
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
Applications
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications.
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
Mechanical dimension(for reference only)
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
Directions
Is will be in a forward direction when the Ip flows according to
the direction of the arrowhead.
The primary conductor should be≤120℃.
The dynamic performance (di/dt and the response time) is the best
when the primary hole is fully filled with the bus bar.
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
Standards
- UL94-V0.
- EN60947-1:2004
- IEC60950-1:2001
- EN50178:1998
- SJ 20790-2000
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
General date
| Value | Unit | Symbol |
| Operating temperature | -40～+85 | ºC | TA |
| Storage temperature | -40～+125 | ºC | TS |
| Mass(approx) | 570 | g | M |
TBC1000LF high precision Closed Loop Hall Effect Current Sensor
Characteristics chart
Pulse current signal response characteristic Effects of impulse
noise
Input signal/Output signal Output voltage
