T5 PC led lighting tube production line SJ50/28 single extruder
extrusion line
Application:
PC lamp production line mainly produces: T5/T8/T10 fluorescent
tube, LED tube (LED fluorescent tube), PC tube, transparent
two-color tube, frosted tube and fluorescent lamp. The types of
lamp include smooth surface, two-color, frosted, sandblasting,
Light diffusion, semicircle, etc.
Layout:
Raw material+additive→Auto feeder→Dryer machine→SJ50/28 Single
screw extruder→T5 led lighting mold→QY-I Haul off machine→QG-I
Chipless cutting machine→stacker
PC led lighting tube production line advantage:
A1: Adopting the best online precision cutting technology in the
industry, it can be cut off once in the line, no need for the
second fine cutting, the cutting precision is controlled within
0.5mm, the cutting is smooth, no shavings, and the efficiency is
higher.
A2: PC special screw, with good plasticizing effect, to ensure that
the product has no crystal point, no trace, meet the requirements
of high transmittance of customer products; no vibration marks,
high transparency
PC led lighting tube production line equipment composition:
A1: Extrusion host: The main machine adopts Siemens motor drive and
frequency conversion control.
A2: Mold: S-136H mirror steel, the surface of the mold is polished
to the mirror surface.

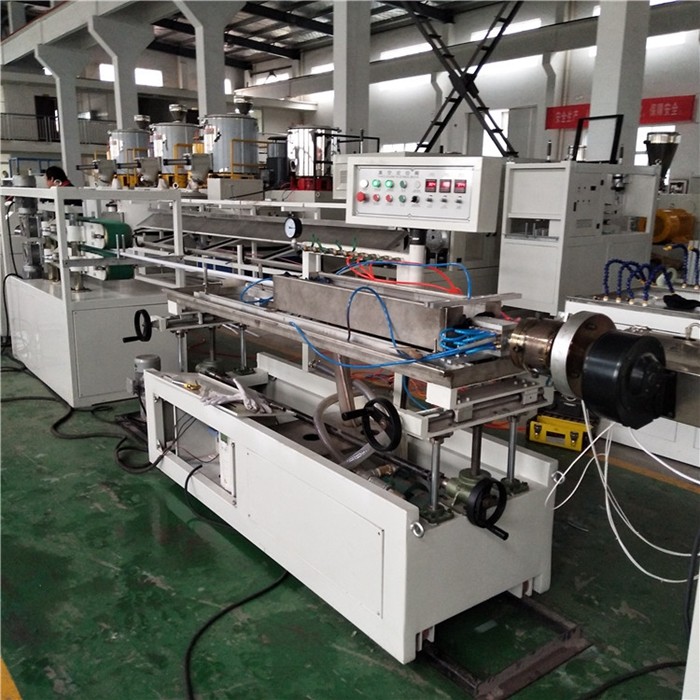

A3: Three-dimensional setting table: stainless steel setting table,
three-dimensional adjustment frame, providing ten-way vacuum,
ten-way cooling water, vacuum pump external, the whole machine is
compact and solid, no vibration.
A4: Belt tractor: surface foaming PU multi-strap tractor, belt with
a limited length of 1.5 meters, high-precision frequency control,
0-15 m / min stepless adjustable.
A5: Fully automatic on-line precision cutting machine/material
rack: Fully automatic on-line precision cutting machine. Due to the
use of innovative cutting technology, photoelectric fixed length
device and high-speed microcomputer control system, it realizes the
online precision cutting problem that has not been solved in the
industry. Online precision cutting accuracy is less than 0.5MM, the
cutting is smooth, no dust, reducing the secondary finishing
process.
Details specification pictures of PC led lighting tube production
line:
Technical dates of PC led lighting tube production line:
| Model | Screw Dia | Screw L/D | Installed power | Max.Capacity | Weight | SIZE:LXWXH |
| BS-50 | 50 | 25-30 | 30kw | 20-30kgs/hr. | 1500kgs | 12x1.5x1.8m |
| BS-65 | 65 | 25-30 | 45kw | 25-40kgs/hr. | 1800kgs | 14x1.5x1.8m |
