    Amcom Messenger Pocsag Paging Transmitter Telemetry Relay Module

    Versatile Paging Transmitter
    The Fusion™ INTELPage IP™ is a state-of-the-art IP paging transmitter that meets the specific needs of the modern paging industry. INTELPage IP is fully compatible for operation, through IP/Ethernet connectivity, with the Fusion Event Management Module™ (EMM) and Amcom Messenger™. In combination with these solutions, the INTELPage IP transmitter ensures messages are dispatched in an accurate and timely manner to communication devices such as pagers and LED signs.

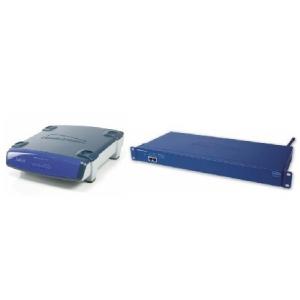

    The INTELPage IP is available in a 19” rack-mount design or stackable plastic enclosure (5 Watt only). The INTELPage IP comes in 5W, 25W, 50W and 100W options to support various coverage requirements and is available in all standard UHF and VHF frequencies.
    Event Management module(EMM)
    Telemetry Relay module(TRM)
    LED Signs
    Amcom Messenger
    Fusion Series INTEL Page IP
    Pagers
    Technical Specifications
    Equipment TypeNon Return to Zero IP and Serial Based POCSAG Encoder
    Power Supply110-240VAC 50/60Hz (Autosensing)
    Frequency Range
    VHF – 148-174 MHz Synthesized
    UHF – 440-470 MHz Synthesized
    External Connectors
    Serial: RS232C, 300-57600 Baud, RJ45F
    Ethernet: IEEE 802.3, 10 Base-T, RJ45
    Status LEDs
    Power, Busy, PTT, Data,
    RS232 Tx, RS232 Rx, IP Activity, IP Link
    ProgrammingVia Terminal or Web Browser
    Pager Database1000 Pager IDs
    Supported Input Protocols
    TAP (PET, IXO) / COMP1, 2 / SCOPE /
    TNPP / Terminal / Tekk (Waveware)
    Supported Output ProtocolsPOCSAG 512, 1200 or 2400bps
    Channel Spacing12.5 kHz (Narrow) & 25 kHz (Wide)
    Dimensions
    5W Plastic – 255 x 230 x 70 mm (10 x 8 x 2.7 inches)
    5W Rack – Standard 19” Rack Case
    439 x 205 x 44 mm (17.3 x 8.1 x 1.7 inches) Minus Rack Ears
    25/50/100W Rack – Standard 2RU 19” Rack Case 439 x 430 x 88 mm (19 x 16.5 x 3.4 inches) Minus Rack Ears
    Weight
    5W Plastic – 0.7kg / 1.5lb Net
    5W Rack – 2.7kg / 5.9lb Net
    25W Rack – 7.0kg / 15.4 lb Net
    50W Rack – 9.5kg / 21.0 lb Net
    100W Rack – 9.5kg / 21.0 lb Net
    Operating Temperature
    0 °C to 50 °C (32 °F to 122 °F)
    (20-90% RH Non-Condensing)
    Storage Temperature-10 °C - 60 °C (14 °F - 140 °F) (10-95% RH Non-condensing)
    ApprovalsFCC, CE, C-tick, ROHS, IC, EN60950, IDA, CB (depending on model)
