    2.5 Ton Wz30-25 Road Construction Machinery With Yunnei 4102 Engine

    2.5 TON WZ30-25 BACKHOE LOADER Road Construction Machinery With YUNNEI 4102 Engine


    Product Introduction

    Model WZ30-25 wheel loader is a kind of unique vehicle which combines the function of wheel loader and excavator together. The rated loading capacity of loader bucket is 2.5 tons. The wheel-side reducer driving axle and full hydraulic transmission case make the vehicle move in any kinds of complex off road ways, it adopts articulated chassis and the min. turning radius is 5.5 meters only.

    Features:

    Powerful breakout force and digging force, bucket automatically laid flat at high dumping position, working time is shortened greatly, and the working efficiency is improved greatly.
    Air-over-oil assist caliper braking system.
    Split type torque converter, not easy to overheat, easy maintenance.
    Leaning-forward front frame, long dumping distance, high raising weight.
    Optional engine: CUMMINS engine or other engine is available.
    Electronic flameout, automatic power off, no knife-switch.

    Main Features


    China TOP Brand YUCHAI Diesel Engine

    WZ30-25 is driven by YUNNEI 4102, 76 kW (103 HP), Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.

    2.5-Ton Loader bucket and 0.3M3 Excavator bucket


    2000 mm wide loader bucket, the rated load of bucket is 2500 Kg. The dumping height is 3500 mm and dumping reach is 1000 mm. The excavator bucket is 0.3M3, max. digging height is 5280 mm, max. digging depth is 3000 mm, and max. digging radius is 4800 mm.


    ROPS & FOPS Cabin
    ROPS & FOPS cabin is available on this vehicle which helps to increase the safety of driver greatly.

    Integrated Front Fame

    Leaning-forward front frame which features long dumping distance and high raising weight.

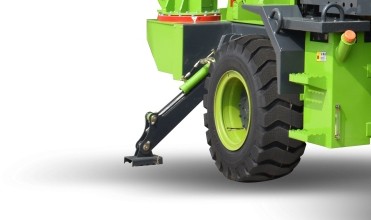

    Safety Lock Outrigger.

    Safety lock outrigger is applied on this vehicle to guarantee the safe operation.

    Thickened Steel Plate Engine Casing

    The engine casing adopts thickened punch forming steel plate, which increases the stability of whole vehicle greatly.

    Split Type Torque Converter

    Split type torque converter is applied on this vehicle which is not easy to overheat, and it is easy for maintenance.

    Bucket

    Rated Load

    2500 Kg

    Bucket Capacity

    1.2 M3

    Bucket Width

    2000 mm

    Dumping Height

    3500 mm

    Dumping Reach

    1000 mm

    Excavator Bucket

    Bucket volume

    0.3 M3

    Bucket Width

    550 mm

    Max. Digging height

    5280 mm

    Max. Digging depth

    3000 mm

    Max. Digging Radius

    4800 mm

    Boom Slewing Angle

    270°

    Engine

    Model

    YUNNEI, 4102 Turbo Charged and Water Cooled

    Rated power

    76 KW (103 HP)

    Emission standard

    Euro II

    Chassis

    Structure

    Articulated chassis

    Articulation angle

    35 degrees

    Transmission gear

    Automatic, 2F+ 2R shift

    Driving & steering

    4-Wheel drive (4x4), hydraulic articulated steering

    Wheelbase

    2550 mm

    Tread

    1600 mm

    Axles

    Medium wheel-side reducer driving axle

    Torque Converter

    YJ280 (Split type)

    Brake

    Air brake

    Tyre size

    Off road steel cord type, 16/70-20

    Cabin

    Type

    ROPS & FOPS type

    Air conditioning system

    Optional

    Vehicle

    Min. turning radius

    5.5 m

    Min. ground clearance

    400 mm

    Operating weight

    6500 Kg

    Overall size (L×W×H)

    7800 x 2100 x 3100 mm

    Optional accessories:

    YUCHAI Engine (4102, 78 KW), CUMMINS Engine (4BT-C100, 75 KW)

    Air Conditioner in side cabin
