FD 530-22 CI Double Industrial Air Bags Convolution Air Spring
Actuator
Technical Parameters of
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.75
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.75
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 315 mm
Bottom Cover Plate Diameter (Width): 315 mm

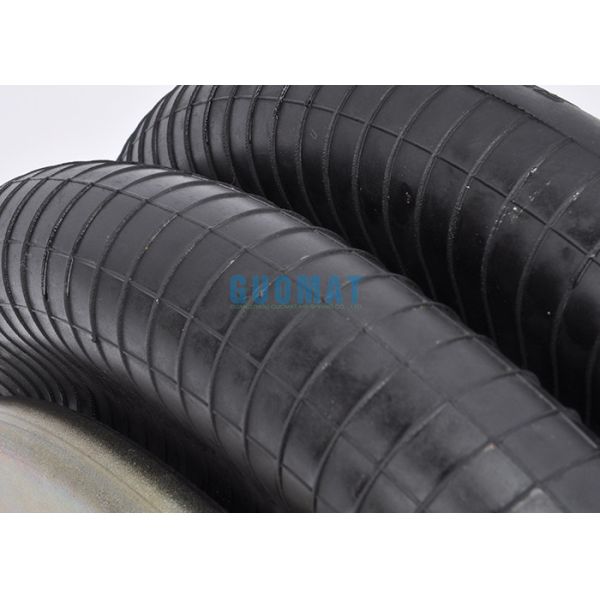

❹Rubber Bellows
Rubber Bellows MAX Diameter : 395 mm
Maximum Height: 300 mm
Working Stroke : 90 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Type
Order No.
Rubber bellows only
60406
with crimped plates, G1/4 air inlet
A = 79.4 mm excentrical
61362
with crimped plates, G3/4 air inlet
A = 79.4 mm excentrical
66512
with crimped plates, G1 air inlet
A = 79.4 mm excentrical
2682075000
Overall weight 6.9 kg
OEM Original Equipment Manufacturer:
GUOMAT NO.:2B53022
Contitech No:FD530-22 311
Contitech No:FD530 22 311
Contitech No: Also known as: 64545,
Contitech No:FD530-22321
Comparable: W013587136,
W01-358-7136,
WO13587136,
WO1-358-7136
FIRESTONE:21T2 W01-358-7135
FIRESTONE:21T2 W01 358 7135
FIRESTONE:21T2 W013587135
GOODYEAR:2B14-360
GOODYEAR:2B14360
GOODYEAR:2B14 360
GOODYEAR::556 22 8 554
GOODYEAR::556-22-8-554
GOODYEAR::556228554
Vibration isolation – dynamic characteristic values Design height H: recommended 250mm, minimum 225mm |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Pneumatic application – static characteristic values Force F [kN] |
| | | | | | | |
| | | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
other kinds of guomat air spring refer to FD 530-22:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] |
| 80 psi | 100 psi | Min | MAX |
| FD 530 22 311 | FD 530-22 311 | 161326 | 6530 | 8170 | 15 | 9.8 | 3.3 | 12.2 | 108 |
| FD 530 22 316 | FD 530-22 316 | 161327 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 321 | FD 530-22 321 | 161328 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 342 | FD 530-22 342 | 161329 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 345 | FD 530-22 345 | 161330 | 6530 | 8170 | 15 | 9.8 | 4.1 | 12.2 | 108 |
| FD 530 22 374 | FD 530-22 374 | 161331 | 6530 | 8170 | 15 | 9.8 | 3.3 | 12.2 | 108 |
