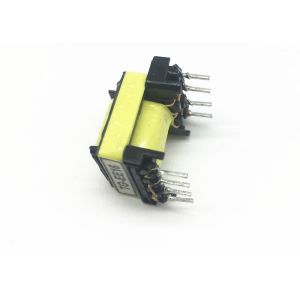

    EE16 Series P4 High Frequency Ferrite Core Transformer Horizontal Type

    Ask Lasest Price
    Brand Name : TIGER
    Model Number : EE16
    Certification : ISO, CE,UL, RoHS
    Price : 1000PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 PCS/Day
    Delivery Time : 15-20 Working days
    • Product Details
    • Company Profile

    EE16 Series P4 High Frequency Ferrite Core Transformer Horizontal Type

    Application:ISO Certificated Customized PQ3225 Vertical Type High Frequency Transformer


    Features:


    • Core mounted Horizontal or Vertical
    • Hipot voltage:2500Vrms
    • Ferrite core material
    High-temperature resistant
    High efficiency of over 95%
    Working frequency range 20kHZ-500kHZ
    High isolation strength
    Lower profile and weight
    High power density
    Operating temperature -40℃to+125℃
    • Custom designs available
    • Rate current @40℃ TYP temperature rise
    • Ideally used as common mode noise filter for TV,VCR,
    Switching power supply,NC machine,PC&PC related
    advice,measurement and control unit
    According to:


    Specifaction :


    No.StartFinishWire sizeTurnsWinding wayTapeNote
    N1122UEW φ0.1577 TSClose winding2 TS
    N297TEX-E φ0.2524 TSClose winding2 TS
    N3232UEW φ0.1569 TSClose winding2 TS
    N4452UEW φ0.1516 TSSparse winding2 TS

    Note

    1,Remove PIN 6,8,10,PIN 2 CUT 2/3
    2,Inserted bobbin into winding machine, with pin 6-10 side towards the right hand side of the machine operator.
    3,CORE FIXED TAPE 2 TS
    4,Winding level off, do not cross, overlapping. 5,The finished product Varnish immersion

    Electrical Datasheet

    ItemTest PointRangeTest ConditionTest machine
    InductanceL(Pin1-3)3.5mH ±10%

    10KHz/0.1V

    25℃

    CH-1062A
    LKPin1-380uH max
    DC ResistanceR(Pin1-3)5.2Ω MAX25℃CH-502A

    HI-POT

    PRI-SEC PRI-CORE SEC-CORE

    4000VAC

    1500VAC

    4000VAC


    5mA 2SEC


    HY7420
