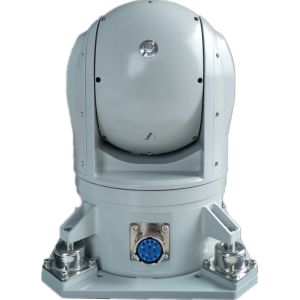

    Buy cheap JHP103-M145C USV Small Gimbal Electro Optical Infrared System from wholesalers

    Buy cheap JHP103-M145C USV Small Gimbal Electro Optical Infrared System from wholesalers
    • Buy cheap JHP103-M145C USV Small Gimbal Electro Optical Infrared System from wholesalers
    • Buy cheap JHP103-M145C USV Small Gimbal Electro Optical Infrared System from wholesalers
    • Buy cheap JHP103-M145C USV Small Gimbal Electro Optical Infrared System from wholesalers

    JHP103-M145C USV Small Gimbal Electro Optical Infrared System

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHP103-M145C
    Certification : ISO9001
    Supply Ability : 100units/Year
    Delivery Time : 2 months after payment
    • Product Details
    • Company Profile

    JHP103-M145C USV Small Gimbal Electro Optical Infrared System

    JHP103-M145A Small Size and Affordable Gimbal

    Description

    JHP103-M145A is a small size gimbal with 2 axis (azimuth and elevation) stabilization for USV. It is equipped with high resolution 1080P day light camera for day search, detection, tracking air and sea surface targets. By its modular structure design, it has small size and light weight.


    Technical Specification

    Day Light Camera
    ModelJHP103-M145C
    CCD1/2.8 inch CMOS
    Resolution1920x1080 (1280x720, 704x576 for optional)
    Focal Length5.0mm~115mm (23x Optical Zoom)
    FOV(H)60°49'~2°85'
    Lens2.16 million pixels high definition
    FocusAuto/Semi-Auto/Manual
    Frame Frequency30Hz (25Hz for optional)
    VideoDigital Video Network Interface,
    Analog Video PAL Interface,
    could output at the same time
    CommunicationRS422
    RangingFishing boat ( 6x2.5m ):≥1Km
    Missile boat ( 34x8m):≥3Km
    Gyro Stabilization Platform
    Stabilization Accuracy0.5mrad (1σ)
    Accuracy±0.1°(1σ)
    Servo Driving System
    Rotation Range
    Azimuthn×360°Continuous
    Pitch-35°~+85°(0° is the horizontal forward)
    Maximum Angle Speed
    Azimuth≥40°/s
    Pitch≥30°/s
    Video Tracking Module
    Static Tracking Accuracy≤1 pixel
    Dynamic Tracking AccuracyBetter than 1mrad
    Tracking Speed≥2.5 FOV/s
    Minimum Tracking Contrast5%
    Environmental Specification
    Operating Temperature Range-20ºC ~ +50ºC
    Storage Temperature Range-30ºC ~ +60ºC
    Physical Specification
    Dimension (DxH)≤ Φ145mm×230mm
    Weight3.38kg ( Not included electronic cabin)
    InstallationShip Mast


    Company Profile



    Customer Distribution


    Service Process


    Main Products-EO/IR Systems



    Main Products-Thermal Security Camera



    Advantages



    Certificate & Honor

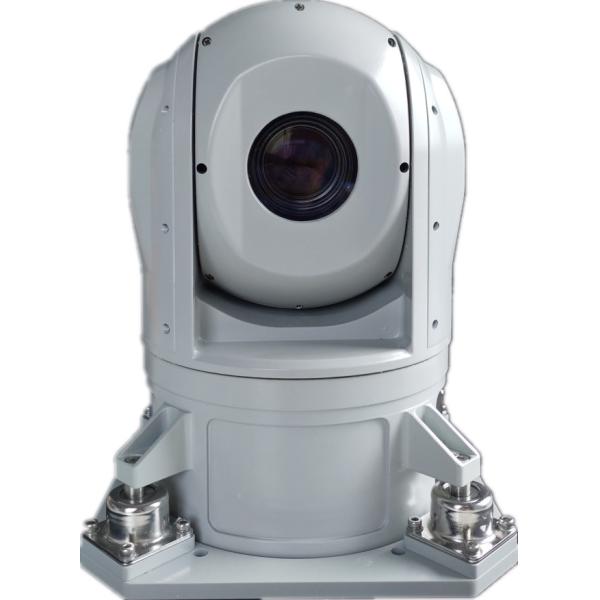

    Quality JHP103-M145C USV Small Gimbal Electro Optical Infrared System for sale
