Aluminum Housing Square Poultry Farm Light for Broiler Chickens Growth

    Buy cheap Aluminum Housing Square Poultry Farm Light for Broiler Chickens Growth from wholesalers

    Buy cheap Aluminum Housing Square Poultry Farm Light for Broiler Chickens Growth from wholesalers
    • Buy cheap Aluminum Housing Square Poultry Farm Light for Broiler Chickens Growth from wholesalers

    Aluminum Housing Square Poultry Farm Light for Broiler Chickens Growth

    Ask Lasest Price
    Brand Name : ATA
    Model Number : ATA-PL10W
    Certification : CE, RoHS, SAA, C-Tick, RCM, CB, FCC, PSE, CCC, ETL, TUV-GS, TUV-mark, VDE, ERP, UL, cUL, DLC
    Price : US $20-30/ Piece
    Payment Terms : T/T, Western Union, Paypal, Cash
    Supply Ability : 500, 000/Meters/Month
    Delivery Time : Samples 3-5 working days, normal orders 7-10 working days
    • Product Details
    • Company Profile

    Aluminum Housing Square Poultry Farm Light for Broiler Chickens Growth

    Intelligent Poultry Farming Lighting System

    The innovated intelligent lighting system for poultry farming, its system consists of Power - Data Supply, Power - Data -Carrying Cable and Dedicated Line Dimmable Light. Deliver high-efficacy light output of up to 120lm/W with wide-range dimming and extreme high lighting uniformity to provide the best lighting for the growth of poultry.

    Intelligent Poultry Farming Lighting Growth of Poultry Light 120/230/240VAC 50/60Hz 36V/40VDC Broiler Chickens


    Product Advantages:
    Extreme high lighting uniformity to provide the best lighting for the growth of poultry
    Help reducing mortality, making broiler chick health, welfare, and overall performance during growing period
    Saving fodder

    Technical Specifications

    NameIntelligent Poultry Farming Lighting System
    Input Voltage120/230/240VAC, 50/60Hz and 36V/40VDC
    PowerMax. 360W per single run, Max. 1800W per PDS
    Run-lengthFloor farming system: 20m leader + 30 fixtures with 5m pitch
    Cage farming system: 50m leader + 70 fixtures with 2m pitch
    InterfaceIR remote or knob dimming control, 0/1-10V dimming interface
    LED DrivingSELV 36V/40VDC
    EfficacyUp to 120 lm/W
    Color Temperature2700K/5000K/560nm(Green), 2700K-6500K(color-tunable)
    HousingAluminum, durable powder painting
    LensPC(Polycarbonate)
    CoolingPassive, aluminum heat-sink
    Life timeL70 hours @25ºC: >50,000
    Temperature Range-20ºC~45ºC
    Humidity10%~90%RH
    Protection RatingIP65, Wet location listed
    Warranty5 years


    Chick Preference Response to Feed Color Under Different Light Colors

    Light ColorBroiler Chicks Feed Color Choices Shown in Percentages
    Red FeedGreen FeedBlue FeedYellow FeedControlUndecided
    Red Light12.515201532.55
    Green Light2010512.52527.5
    Blue Light42.57.52012.512.55
    Yellow Light17.527.517.522.512.52.5
    White Light27.52012.51012.517.5


    SOURCE: BROILER PREFERENCE FOR LIGHT COLOR AND FEED FORM, AND THE EFFECT OF LIGHT ON GROWTH AND
    PERFORMANCE OF BROILER CHICKS. By RUSTY DEL RIERSON B.S., Kansas

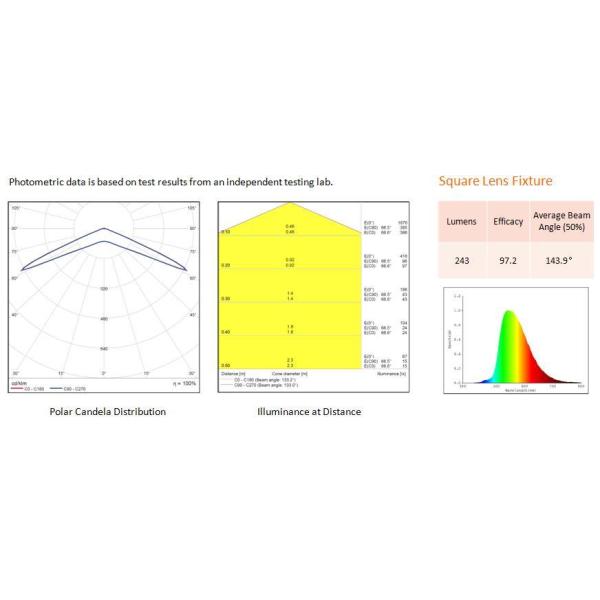

    Photometrics
    Intelligent Poultry Farming Lighting Growth of Poultry Light 120/230/240VAC 50/60Hz 36V/40VDC Broiler Chickens

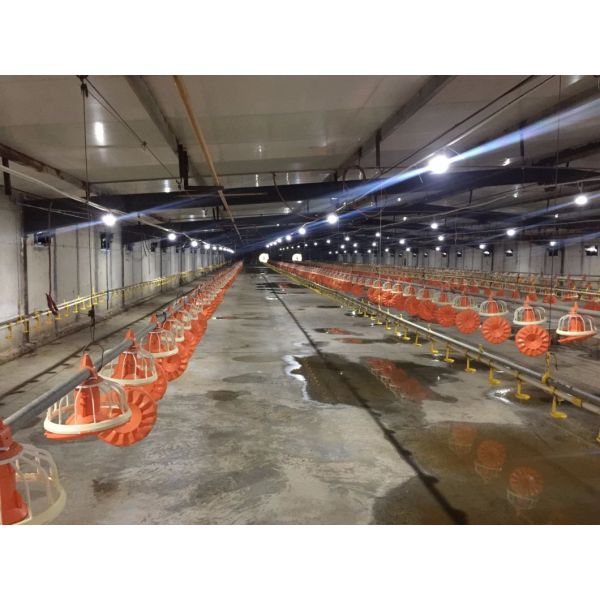

    Application: Farm
    Intelligent Poultry Farming Lighting Growth of Poultry Light 120/230/240VAC 50/60Hz 36V/40VDC Broiler Chickens

    User Manual:
    Switch off power of the mains supply or respectively of the connection lead before doing any works.
    The complete installation must be done by an electrical expert who is familiar with the valid directives.

    Quaity Control:
    Stability TEST: make sure 100% of the lamps be aging test at least 48hours
    Lighting TEST: make sure 100% of the lamps be lighted before packing
    Drop TEST: make sure every single light have been well protected by box

    Contact:
    Peony Jin
    Mobile: 0086-180 0253 2737
    Please feel free to send us your inquiry, We are at your service any time!
