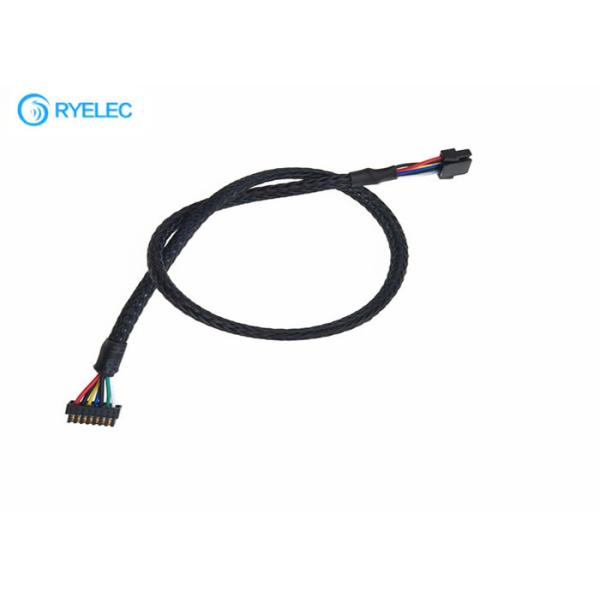

Molex 505565-0701 to Micro-Lock Plus Wire-to-Board 7pin Molex
505565 Wire Harness
Electrical Characteristics
| Material | All materials are compliant with Rohs |
| Connectors | Tyco, AMP, Molex, JST, JAE, Delphi or according to your
requirements. |
| Length | Customized or according to your requirements |
| Sample | Sample can be provided for evaluating |
| Connector Pole | 2-24pin |
| Connector Pitch | 1.25mm |
| Cable type | UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type |
| Cable color |
Optional |
| Processing ways | Crimping, pressing and soldering types. |
| Pin out connection | As per customer’s request |
| ISO certificate | ISO9001:2008 |
| Performance Test: | 100% electrical and electricity performance test |
We can produce series of wire harnesses:
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choosing us for car wire harness ?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. More than 10years experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
FAQ:
1. What is your minimum order?
Small quantity can be accepted, like 100pcs.
2. If I don't have any drawings, can you still quote my product?
Yes, just provide as many details as possible about your product
and quoting department can get started on your quote. As an added
service, our qualified engineering staff can produce drawings.
3. Who do I contact if I have a technical questions?
We have an experienced team of technical sales representatives in
house. They are ready to answer any questions you may have and
assist you in your project.
4. What is your standard lead-time?
Typically it is 2-3weeks, but it does vary. We guarantee to produce
the harness and ship them asap.
5. What parts do you stock?
We stock many common connectors for quicker turnaround times, such
as Molex, Amp, ERNI and many others. In addition, we offer safety
stock programs to those who qualify.
6. What payment methods do you accept?
T/T ,Western Union, paypal are all available.
7. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
