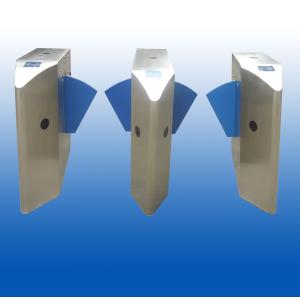

Intelligent Retractable Flap Barrier RS485 Communication Relay
Input Card Swipe
Summary:
The product integrating with mechanism, electron, microprocessor
and various identification technology is compatible with card
reader devices such as IC card, ID card, bar code, fingerprint and
so on. By configuring all kinds of identification devices and
adopting reliable safeguard devices, alarm devices, direction
indicator etc, it is able to achieve access intelligentized control
and management.
Function and characteristics:
1. With function of self-examine and alarm, it is convenient for
maintenance and use.
2. Being able to program running status by the small keyboard in
the main board
3. Preventing pedestrians from being nipped and from hurt
4. Sound alarm function including the illegal in and the tail
5. Doors are automatically locked till opening signal is received.
6. Doors synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the
pedestrian has not pass through the channel in the pre-set time
after the opening. The passing time is adjustable from 1-60sec by
client.
8. Automatically open the gate when power off and automatically
close when power on
9. All kinds of access controller/card readers are attachable,
relay out signal can be received.
10. One direction or bi-direction is optional. (adjustable by User)
11. It can be directly controlled and managed by remote control.
12. Many working models which can be set by press the small buttons
on the Control Board:
a. Bi-directional card reading for entry and exit
b. Card reading for one direction and another direction is forbade
c. Card reading for one direction and another direction for free
passing
d. Gate open and close by IR sensor detection one way or two way
13. Silent running with no noise
14. Anti-pinch doubly by mechanical device and IR sensors
15. Gate close when pedestrian has passed the first IR sensor
behind flap door
16. Intruder alarm function: Alarm sounds when burst into the lane
without card reading or invalid card reading
17. Can be set with/without memory of valid signal input, e.g. with
memory function, card reading 3times, 3pedestrians can pass.
18. LED status indicator
19. With normal open & normal close function
20. With traffic light and emergency function, barrier open
automatically when alarm signal is given or power off.
Peripherals options:
1. Electronic counter
2. Access control system
3. E-ticketing system
4. Time attendance system
5. Exit button
6. Remote controller
……
Standard technical parameters
Framework material: SUS304 stainless steel (standard), Cold rolling
iron painted, SUS316 can be customized
Thickness of material: 1.5mm(default), 2.0mm is optional
Surface Finish: wiredrawing finished(default), polishing finish can
be made as required
Lane width: 550-600mm
Net Weight: single mechanism unit is approx 65kg, double mechanism
unit is approx 85Kg/unit
Power supply: AC220/110V+-10% , 50/60Hz
Driving electromotor: DC24V 30W
Input interface: Dry contact signal or +12V level signal or DC12V
pulse signal with width of more than 100ms, driving current:
>=10mA
Normal life-span(MCBF): 3million times
IP level: 65
Communication interface: RS485 standard, distance<=1200metres
IR sensors: 3(standard)-10pairs can be mounted as required
Transit speed: 30-40 persons/min(normal close), 50
persons/min(normal open)
Time for opening or closing: 1s
Starting time after power on: 3s
Automatic reset time after fault: 10s
Working environment: indoor, outdoor (with a tent over)
Temperature: -15℃—— 60℃
Relative humidity: ≤90%, no condensation
Application:
Building main entrance
Bank
Hotel
View spot entrance
Enterprise access control/time attendance
Supermarket/shopping mall
Bus/train station
……
