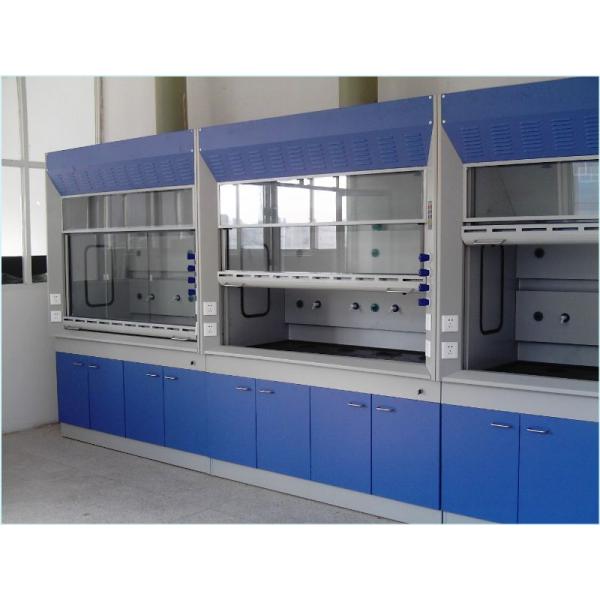

Cold Rolled Steel Laboratory Fume Hood , Large Solid Benchtop Fume
Hood
Main description of laboratory fume hoods unit
Size: L1200/1500/1800*W2350*H800mm (customized)
Color: blue, red, gray white, yellow (optional)
All steel material laboratory fume hoods unit
♥ Material: all steel
♥ Worktop: a. 12mm solid physical and chemical board
b. 16/19/25mm epoxy resin board
c. 20mm ceramic
d. 20mm marble
♥ Cabinet body: using high-qulity cold-rolled steel plate bending
shape, the thickness is 1.0mm, pickling, phosphating, epoxy powder
coating surface
♥ Interior lining pannel: 6mm thick acid compact board
♥ Guide plate: 6mm thick acid compact board
♥ Visual window: 6mm tempered glass
♥ Storage cabinet handle: a. aluminum alloy
b. PVC handle
c. Stainless steel
♥ Fan: centrifugal fan or axial flow fan (depends on customer
requirement)
♥ A 30W fluorescent lamps, hidden in the panel
♥ A small PP material cup and laboratory dedicated single-port
copper taps with paint
PP material laboratory fume hoods unit
♦ Material: PP
♦ Worktop: a. 12.7mm solid physical and chemical board
b. 16/19/25mm epoxy resin board
c. 20mm ceramic
d. 20mm marble
♦ Cabinet body: 12mm thick white PP board, PP welding rod fully
welded connections, structural stability, good load-bearing with
activities inside PP laminates
♦ Interior lining panel: PP material
♦ Guide plate: PPmaterial
♦ Visual window: 6mm tempered glass
♦ Storage cabinet handle: PP material handle
Fan: centrifugal fan, or axial flow fan
♦ A 30W fluorescent lamps, hidden in the panel
♦ A small PP material cup and laboratory dedicated single-port
copper taps with paint
Advantage
1. all steel material body has long life cycle
2. the body is used CNC machining equipment forming can ensure the
flatness of the cabinet and aesthetics, cabinet surface after
degreasing, table transfer, phosphate, passivity, electrostatic
powder spray
3. the PP material body has the strongest resistance to acid and
alkali
4. the all steel/PP material can be better fungi-proofing
5. products can be designed by your special need
6. fast delivery with beautiful and good packing
You may interested in these products
Our products application
About our service
Packing and delivery
Our certification
Our other projects
Company profile
Guangzhou Hopui Laboratory Equipment Co., Ltd. is professional in lab projects, dedicated to laboratory system engineering
solutions. We supply all process including laboratory design,
laboratory equipment production, laboratory furniture installation
and after- sale service. We have high-quality production lines, and
use the best lab furniture materials and a modern standard from the
USA and Europe. We can make the whole lab projects match your
laboratories with our perfect design.
