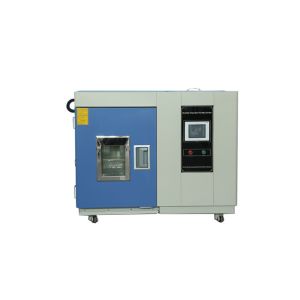

Control Humidity Cold Hot Temperature Chamber / Microclimate Benchtop Test Chamber

Control Humidity Cold Hot Temperature Chamber Microclimate Benchtop Test Chamber

Temperature Chamber Microclimate Benchtop Test Chamber compact, portable and affordable, supply a large range of standard and custom temperature and climate test chambers to suit many types of environmental test conditions.Standard configuration including 2 adjustable trays,1 test hole with silicone screw plug,Multi - language color display.

Temperature Chamber Microclimate Benchtop Test Chamber are mainly used to Aerospace products information electronic instrumentation materials electrical and electronic products are all kinds of electronic elements in the high and low temperature or damp and hot environment test its various performance indicators application field.Examples include cables, mobile phones, computers, screws, metals, aerospace parts, textiles, ceramics, portable power supplies, PV panels, etc.

●Temperature control and display unit

●Humidity control and display unit

●2 pieces of adjustable and removable shelving.

●Bottom install 4 castors for ease moving, and with brakes function

●Viewing window with interior lighting

●Programs reach to 999 groups and 999 sections

●Test hole with silicone screw plug

●Safety protection system

●Can perform long time 85 °C/85 % RH tests

●Temperature sensor PT-100 , Resolution: ± 0.001 ℃

Test Area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole, sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves

Air Circulation

Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board.

Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.

Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage

Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply

Safety Protection

Over temperature protection

Water shortage protection

Humidifier dry combustion protection

Refrigerant high pressure protection

Over current protection

Earth leakage protection

◆3 Years Warranty, Lifelong Follow-up Services.

◆​Training how to install and operate the machine.

◆​Training how to maintain the machine.

◆​Response within 24 hours once got questions from customers.

◆​Send spare parts within 2 days after got notice.

◆​Engineers available to service machines overseas to install and commissioning.
