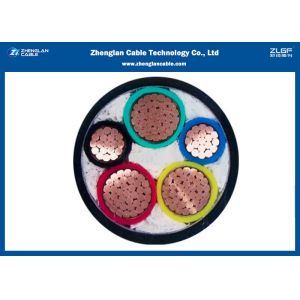

PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA)

    Buy cheap PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA) from wholesalers

    Buy cheap PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA) from wholesalers
    • Buy cheap PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA) from wholesalers
    • Buy cheap PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA) from wholesalers

    PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA)

    Ask Lasest Price
    Brand Name : Zhenglan Cable
    Model Number : ZR-YJV22-0.6/1kV
    Certification : ISO9001,CCC, CE, etc
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 15 Working Days
    Price : Negotiable
    Supply Ability : 12,000 KM/Year
    • Product Details
    • Company Profile

    PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA)

    PVC Armoured Cable , Multi Core Copper Cable Rated Voltage 0.6/1kV (CU/PVC/LSZH/STA)


    Product features:
    Brand Name: Zhenglan Cable
    Insulation Material: XLPE
    Type: Low Voltage Power cable
    Application: Construction
    Conductor Material: Copper/Aluminum
    Jacket: PVC
    Sizes: 1.5~1000mm2
    Insulation color: Red, Yellow, Green or According to clients demands
    Number of cores: 1-5cores
    Rated voltage: 0.6/1KV
    Armoured: Steel Wire(SWA)
    Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

    Parameters Table:

    0.6/1kV PVC Insulated Power CableConductorInsulationArmorOuter Sheath
    AluminumCopperPVCSWSTDSTAWPVCPE
    Cu/PVC/PVCPP------------P
    Cu/PVC/PEPP------------P
    Al/PVC/PVCPP------------P
    Al/PVC/PEPP------------P
    Cu/PVC/STA/PVCPP---P------P
    Cu/PVC/STA/PEPP---P------P
    Al/PVC/STA/PVCPP---P------P
    Al/PVC/STA/PEPP---P------P
    Cu/PVC/DSTA/PVCPP------P---P
    Cu/PVC/DSTA/PEPP------P---P
    Al/PVC/DSTA/PVCPP------P---P
    Al/PVC/DSTA/PEPP------P---P
    Cu/PVC/SWA/PVCPPP---------P
    Cu/PVC/SWA/PEPPP---------P
    Al/PVC/SWA/PVCPPP---------P
    Al/PVC/SWA/PEPPP---------P
    Cu/PVC/AWA/PVCPP---------PP
    Cu/PVC/AWA/PEPP---------PP
    Al/PVC/AWA/PVCPP---------PP
    Al/PVC/AWA/PEPP---------PP

    Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire


    Characteristics:
    1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
    2. Conductor maximum short circuit(less than 5 second) temperature shall not be higher than 160℃.
    3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
    4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
    5. Light weight, perfect bending properties, installed and maintained easily and conveniently.


    Products show:



    Why Choose Zhenglan Cable:

    • OEM/ODM services provided
    • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
    • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
    • Registered capital of $30 million and factory covers an area of 60,000㎡
    • Advanced test equipment and procedures, 100% inspection before factory
    • Enough stocks and the higest efficient shipping time guarranteed
    • Professional pre-sales and after-sales services provided
