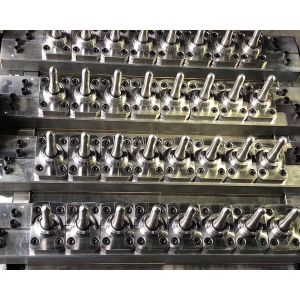

PET Bottle Blow Molding Machine , Plastic Bottle Making Machine 18.5kw Power

The new generation mold locking device and computer emulation optimized parameter makes motions of the moving plate, fixed plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is secured. As compared with similar machines, it owns bigger internal spur between tie bars, mold space and mold opening stroke and may process plastic products of bigger size.

High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.

Five point double tiggle clamping unit
Electronic ruler for mold open and close position
Mechanical safety device
Multi stage of mold open /close speed, pressure and position
Fast mold close
Automatic mold height adjustment
Low pressure mold protection
Box model platen: T slots
Auto centering lubrication system

5. New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6. Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7. Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8. New frame structure

Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.

Simple and generous appearance, machine body force reasonable and stronger.
9. Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10. High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder,pressure transducer and servo amplifier to get system closed-loop control

NINGBO HAIJIANG MACHINERY MANUFACTURING CO.,LTD., situated in Ningbo Yinzhou Investment & Innovation Center, coversa land of more than 50,000M2.It was established in 1992 and now employs a staff of more than 500 people. with CE and ISO9001

Haijiang Company is a hihg-tech enterprise specialized in manufacturing injection molding machine that mainly covers dozens of speci?cations with injection shot of 45-2,0000g and mold clamping force of 400-15,000KN. Based on the marrow of the trade gained and through years' accumulation, the company has made constant innovation to ensure the machine quality.Parts built into the machines of defferent mold locking forces are all processed under specialized management. HJF series injection molding machines are developed by Haijiang Company on the basis of a collection of the advantages assimilated from all world famous brand machines with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and thus the design quality of products is secured. The company adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision full automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Its present products such as HJK and KJF series and widely applied in the electronic, automobile and civil industries.
In order to participate in competition in the world market,the company has clustered a group of high quality technical and managerial personnel with innovative spirit by means of optimized combination fo personnel. The company faces the society and users by acting on the principle of pursuit for ?rst class and sincere service. We will appreciate friends from all circles who have given their concern and support to Haijiang machines with first class products and first class after service.
