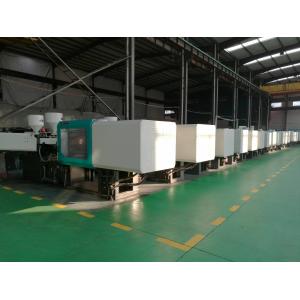

plastic fish tank making machine Plastic Injection Molding Machine large plastic round fish tank

Hydraulic closed loop and motor speed closed loop is realized by control system with the features of high repetition, high linearity, high linearity, high efficiency, high precision, fast response, low rejection rate,low noise, low vibration and long service life, High-rigidity template design with T shot andordinary threaded hole facilitates the mold installtion. Oil filter equipment of high performance and high precision can keep the grease within NAS8. Color control system is adopted.

2. Injection Unit Features

2.1 Injection unit adopts duble-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.

2.2 Enlarged-cylinder, adopting two -cylinder design,effectively prevent the adhesive-material leaking phenomenon because of the machine vibration or other reasons when the nozzle is under high-speed operation.

2.3 Adopting graphite bush, improving the wear-resistance, reducing the frequency of using lubrication oil effectively improve the cleanness of the injection part.

2.4 Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.

2.5 Bridge-style design, for different L/D plastic parts.

The Clamping Parts
The new generation mold locking device and computer emulation optimized parameter makes motions of the moving plate, fixed plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is secured. As compared with similar machines, it owns bigger internal spur between tie bars, mold space and mold opening stroke and may process plastic products of bigger size.

1. High energy savings

Under normal operating conditions, compared with conventional

hydraulic injection molding machines, energy savings of 20-80%

can be achieved.

2. Molding stability

Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.

3. Quick response

Featuring a dynamic servo motor with a response time of only 0.05sec

4. Quiet operation

The machine runs at much lower noise levels, particularly in low speed applications.

5. Reliable holding pressure

Compared with traditional hydraulic machine the holding pressure is more stable and does not have limitation.

16 Better oil temperature stabitily

The servo system only delivers hydraulic oil as it is needed for the various functions. This prevents unnecessary generation of heat and substantially reduces oil cooling requirements.

Servo energy-saving system

Using the servo motor oil esectriciyt composite sturcture, high response, low noile and excellent

electricity -saving performance.

NINGBO HAIJIANG MACHINERY MANUFACTURING CO.,LTD., situated in Ningbo Yinzhou Investment & Innovation Center, coversa land of more than 50,000M2.It was established in 1992 and now employs a staff of more than 500 people. with CE and ISO9001

Haijiang Company is a hihg-tech enterprise specialized in manufacturing injection molding machine that mainly covers dozens of speci?cations with injection shot of 45-2,0000g and mold clamping force of 400-15,000KN. Based on the marrow of the trade gained and through years' accumulation, the company has made constant innovation to ensure the machine quality.Parts built into the machines of defferent mold locking forces are all processed under specialized management. HJF series injection molding machines are developed by Haijiang Company on the basis of a collection of the advantages assimilated from all world famous brand machines with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and thus the design quality of products is secured. The company adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision full automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Its present products such as HJK and KJF series and widely applied in the electronic, automobile and civil industries.
In order to participate in competition in the world market,the company has clustered a group of high quality technical and managerial personnel with innovative spirit by means of optimized combination fo personnel. The company faces the society and users by acting on the principle of pursuit for ?rst class and sincere service. We will appreciate friends from all circles who have given their concern and support to Haijiang machines with first class products and first class after service.
