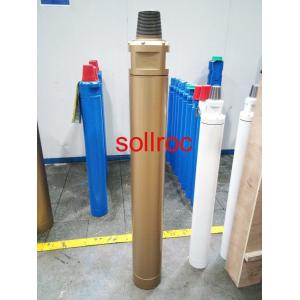

SD10 Shank 10'' Down The Hole DTH Hammer Carburized Steel For
Construction
Product Introduce
The SOLLROC hammers maintain excellent operating pressure over an
extended service life and overall is the tool you require to get
the maximum out of all your equipment and guarantees that the
quality you expect is always delivered.
Applications include oil & gas, construction, water well, and blast
hole
Feature
All critical internal components are heat treated under strict
control to maximize tool longevity
An overall cost-effective and user-friendly tool for use in the
most demanding conditions
Working Principle
SOLLROC DTH hammer consist of only two moving parts: the piston and
the valve. With so few moving parts, the smart solution delivers
reliable high performance drilling in the most challenging
conditions. Water, at up to 180 bar delivery pressure, is used to
power the impact mechanism of the hammer at a high frequency rate.
When the water leaves the hammer, it loses the pressure and keeps a
low flush velocity. This however is still adequate to bring any
cuttings to the surface and clean the borehole. Additionally, the
hydrostatic column, which is created above the hammer, helps to
keep the hole stable while preventing potential collapse. This also
prevents water from being drawn into the borehole, which increases
hole stability and prevents potential environmental issues.
Specification
Shank | SD10 |
Length (less bit) | 1525mm |
Outer diameter | 226mm |
Top sub thread | API 6 5/8" REG |
Weight (less bit) | 316kg |
Hole range | 254mm-311mm |
Working pressure | 10-30bar |
Impact rate at 1.7 Mpa | 20Hz |
Recommended rotation speed | 15-25 r/min |
