Customized Non Standard Fasteners CNC Machining Type For Automation Equipment

Name: Customized Non Standard Fasteners CNC Machining Type For Automation Equipment
Brand: JESENTECH
Price: 1 USD

Ask Lasest Price
Brand Name :	JESENTECH
Model Number :	Non standard customization
Certification :	IATF 16949:2016
Price :	Negotiated price
Payment Terms :	T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :	4500000 pieces/Month
Delivery Time :	3-7 days
MOQ :	1-5 Pieces

Add to Cart

Product Details
Company Profile

Customized Non Standard Fasteners CNC Machining Type For Automation Equipment

Customized machining according to drawing Non Standard Fasteners for automation equipment

Elastic cylindrical pin, also known as the spring pin, is a headless hollow column shape, axial slotting, two end chamfering, used for positioning, connecting, fixing between parts;Good elasticity and shear resistance are required. The outer diameter of such pins is slightly larger than the assembly aperture.

Elastic cylindrical pin classification

1) lightweight elastic cylindrical pin

2) heavy duty elastic cylindrical pin

The main difference between light and heavy is the thickness of the material and the width of the chamfering, heavy spring pin material thickness and the width of the chamfering are larger than the light.

Elastic cylindrical pin with teeth

1) lightweight elastic cylindrical pin

2) heavy duty elastic cylindrical pin

The shape of the elastic cylindrical pin is similar to that of the common elastic cylindrical pin.

Roll elastic cylindrical pin

1) light roll elastic cylindrical pin

2) heavy rolled elastic cylindrical pin

Desgination diameter D			S	Desgination L
Desgination diameter D
Desgination	Max	Min
1	1.3	1.2	0.2	4-20
1.5	1.8	1.7	0.3	4-20
2	2.4	2.3	0.4	4-30
2.5	2.9	2.8	0.5	4-30
3	3.5	3.2	0.5	4-40
4	4	3.8	0.8	4-50
5	4.6	4.4	1	5-80
6	5.6	5.4	1	10-100
8	6.7	6.4	1.5	10-120
10	8.8	8.5	2	10-160
12	10.8	10.5	2	10-180
16	12.8	12.5	3	10-200
20	16.8	16.5	4	10-200
25	25.8	25.4	4.5	14-200
30	30.8	30.4	5	14-200

Product Tags:

industrial fasteners

custom fasteners

Customized Non Standard Fasteners CNC Machining Type For Automation Equipment

Customized Lathe Turning Non Metallic Hex Post Fasteners For 3D Printing Device

Air Tool Quick Connect Brass Air Compressor Hose Accessories Tool Set

CNC Turning Linear Motion Shaft 3D Printer Use With Good Synchronization Performance

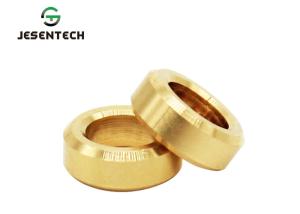

Brass Material Non Standard Fasteners , Custom Bushing Sleeve For Automatic Machine
