    Threaded Button Mining Hard Rock Drilling Tools Tungsten Carbide Inserts

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : 64mm-12 DEG
    Certification : API
    Price : negotiation
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 30000pcs per month
    Delivery Time : 10-22days
    • Product Details
    • Company Profile

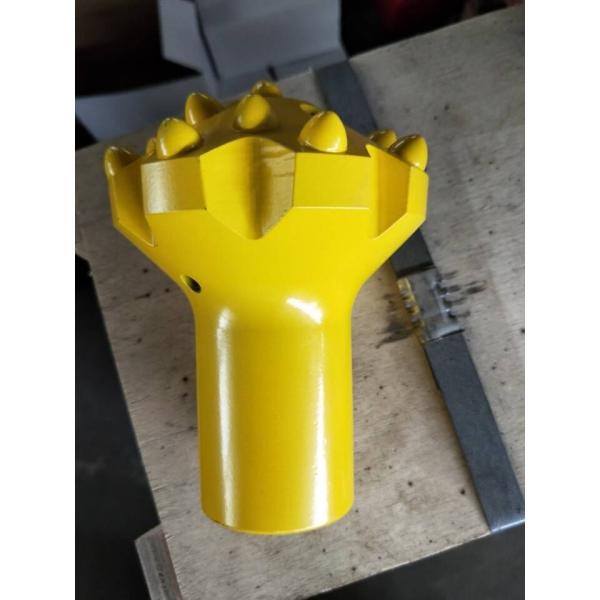

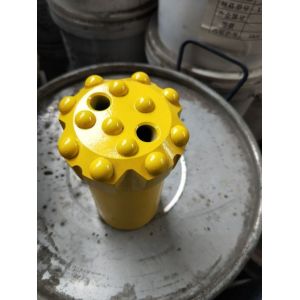

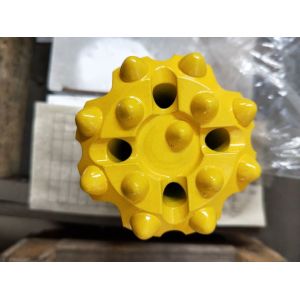

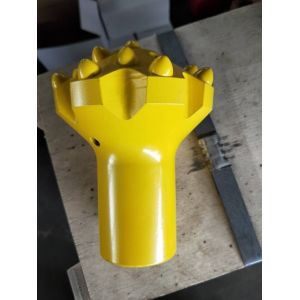

    Threaded Button Mining Hard Rock Drilling Tools Tungsten Carbide Inserts

    R25 R32 R38 Mining Hard Rock Drilling Tools Quarry Tungsten Carbide Inserts Threaded Reaming Button Drill Dome Bit


    These bits are designed for layer drilling, to enlarge pilot holes for long hole blasting of drop raises in underground mines, and constructing service holes.

    Acedrills' reaming equipments come with three kinds: reamer bit match with pilot bit, or dome bit or hole opener bit separately.


    1) Thread connection: R25, R28, R32

    2) Steel material: 45CrNiMoV.
    3) Suitable carbide tips.
    4) Bits diameter: 64-127mm.

    Reaming Bits
    Pilot Drill Bits
    Dome Bits
    Hole Opener Bits
    Bits Diameter
    57~160mm
    36 or 40mm
    76~152mm

    Tapper Degree

    6º,12º


    Specifications

    Bits DiameterBits DiameterConnection
    Reaming Bits57 ~ 160mm (2 1/4” ~ 6 1/4”)6°, 12° taper degree, or R25, R28, R32 threads
    Pilot Drill Bits36 or 40mm (1 27/64” or 1 37/64”)with back thread size of R25, R28, R32, and matched central connection as the relative reamer bits
    Dome Bits76 ~ 152mm (3” ~ 6”)R25, R28, R32, R38, T38, T45, and T51
    Hole Opener Bits

    Reamed:76 ~ 165mm (3” ~ 6”)

    Pilot:26 ~ 102mm (1” ~ 4”)

    R32, R38, T38, T45, and T51


    Usage:

    Drilling in ore field,

    Suitable even for harsh enviroment works;

    Our Services

    KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

    • Hazardous environment
    • Acts, regulations, and other government guidelines that has to be followed
    • Significant differences in the way people work, mostly due to physical constraints
    • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour.
