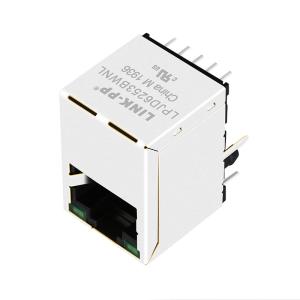

    HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : HR871198A
    Certification : UL,ROHS,Reach,ISO
    Price : $0.09-$1.85
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 3000000/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL

    HR871198A Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD6253BWNL

    Shielded Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics ,Green/Green LED,RoHS
    LINK-PP Part NumberLPJD6253BWNL
    Hanrun Part NumberHR871198A
    Application-LanETHERNET(PoE)
    AutomDXYES
    Bst CircuitYES
    Configuration RXT,C
    Configuration TXT,C
    Contact Mating Area PlatingGOLD 6u"/15u"/30u"
    Cores per Port-
    DiodesNO DIODES
    LED OptionGreen/Green
    LatchTAB UP
    Number of Ports1X1
    PCBFR4
    PCB Mount AngleVertical
    PCB Retaining PostT POST
    Package Height (Inches)0.660
    Package Height (mm)16.76
    Package Length (Inches)0.911
    Package Length (mm)23.15
    Package Width (Inches)0.634
    Package Width (mm)16.10
    Pin TypeTHT SOLDER
    RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
    SearchYES
    Shield EMI TabsWITHOUT
    Speed10/100 Base-T
    Temperature0 TO 70℃
    Turns Ratio RX1CT:1CT
    Turns Ratio TX1CT:1CT

    FEATURES

    • Manufactured with minimal numbers of solder connections to increase reliability over time
    • All MagJacks are 100% tested
    • Multiple solutions can be integrated into one connector series
    • RoHs compatible
    • Electrical performance
    • Shielded magnetics
    • Shorter PCB traces
    • Over 50% space savings on PCB per RJ port
