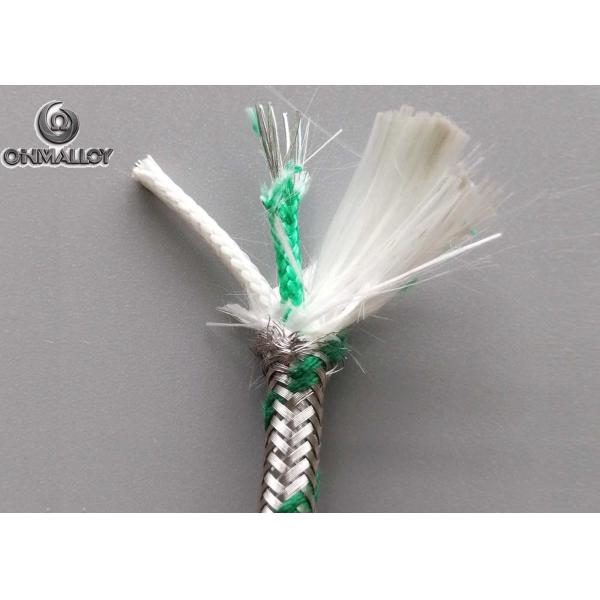

Thermocouple Compensation Cable Type K Instrumentation Cable PTFE Fiberglass Insulated SS310 Sheath 200M/Roll

Thermocouple Compensation Cable Type K Instrumentation Cable PTFE Fiberglass Insulated SS310 Sheath 200M/Roll

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

1. Chemical Composition

Material	Chemical composition (%)
Material	Ni	Cr	Si	Mn	Al
KP(Chromel)	90	10
KN(Alumel)	95		1-2	0.5-1.5	1-1.5

2. Physical Properties and Mechnical Properties

Material	Density(g/cm³)	Melting pointºC)	Tensile Strength(Mpa)	Volume resistivity(μΩ.cm)	Elongation rate (%)
KP(Chromel)	8.5	1427	>490	70.6(20ºC)	>10
KN(Alumel)	8.6	1399	>390	29.4(20ºC)	>15

3.Size and Insulation Material Reference

Size and Insulation Material Reference
Type	Cross-Section (mm2)	Diameter		Insulation Material/ Jacket Material	Shield
		AWG (SingleCore)	mm (Multi-Core)
		AWG (SingleCore)	mm (Multi-Core)
SC RC BC KCA KCB KX NC NX EX JX LX	0.07	-	1 x 0.30	Ceramic Fiber(-60,+1200℃) Vitreous Silica(-60,+800℃) Mica(-60,+650℃) Silica Fiber(-60,+1000℃) High Temperature Fiber(-60,+600℃) Fiberglass(-60,+450℃) PolyimideTape/Kapton(-60,+260℃) PTFE(-60,+275℃) PFA(-60,+275℃) FEP(-60,+205℃) SiliconeRubber(-60,+200℃) PVC(-25,+105℃) PVC(-25,+70℃)	Nickel Chrome Alloy Wire Braiding; Stainless Steel Braiding; Tin-plated Copper Braiding; Aluminum-plastic Tape Wraping; Copper Tape Wraping; Aluminum Foil Wraping
	0.22	24	7 x 0.20
	0.35	22	5 x 0.30
	0.40	21	13 x 0.20
	0.50	20	7 x 0.30
	0.50	20	19 x 0.20
	0.75	19	7 x 0.37
	0.75	19	24 x 0.20
	1.00	18	14 x 0.30
	1.00	18	24 x 0.20
	1.34	16	7 x 0.49
	1.34	16	19 x 0.30
	1.50	16	7 x 0.52
	1.50	16	21 x 0.30
	2.00	14	19 x 0.366
	2.00	14	28 x 0.30
	2.50	13	19 x 0.41
	2.50	13	36 x 0.30
