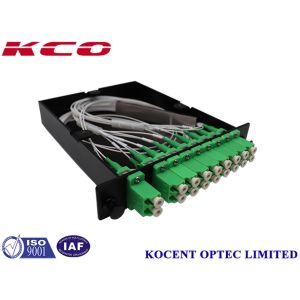

    2*16 LGX Box Fiber Optical Splitter LC/APC Connector 2 Way Input 16 Way Output

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-GLX for Chassic
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 set/ month
    Delivery Time : 5~8 days
    • Product Details
    • Company Profile

    2*16 LGX Box Fiber Optical Splitter LC/APC Connector 2 Way Input 16 Way Output

    2*16 LGX Box Fiber Optical Splitter LC/APC For 3U Splitter Chassic Patch Panel


    Description:

    - This 2*16 LGX Box Fiber Optical Splitter LC/APC is special design for our 3U Splitter Chassic Patch Panel. Please contact with our sales team to get detail information about this box.

    - With small size design, it can save more space for your cabinet.

    - It maximum can install 1pcs of 1*8 fiber optic splitter with SC type connector or 2*16 fiber optic splitter with LC type connector.

    - The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.

    - Paint color can choose grey, white or black or as your request.

    - OEM service is open for all of old and new customer.

    - Splitter and adapter installation charging is free if you buy all patch panel, splitter and adapter from us.

    - Logo printing is free for all of order with quantity more than 100pcs.


    Fiber optic PLC Splitter Features:

    - Low insertion loss.

    - Low Polarization Dependent Loss.

    - Excellent Environmental Stability.

    - Excellent Mechanical Stability.

    - Meet Telcordia GR-1221 and GR-1209.


    Fiber optic PLC Splitter Applications:

    - Fiber to The Point (FTTX).

    - Fiber to The Home (FTTH).

    - Passive Optical Networks (PON).

    - Gigabit Passive Optical Networks (GPON).

    - Local Area Networks (LAN).

    - Cable Television (CATV).

    - Test Equipment.


    Descriptions:

    Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

    The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

    1x64 LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.


    Fiber optic PLC Splitter Specifications:

    Fiber length1m or custom length
    Connector TypeCustom specified
    Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
    Directivity (dB) Min *55
    Return Loss (dB) Min *55 (50)
    Power Handling (mW)300
    Operating Wavelength (nm)1260 ~ 1650
    Operating Temperature(°C)-40~ +85
    Storage Temperature(°C)-40 ~ +85
    Port Configuration1x21x41x81x161x321x64
    Insertion Loss(dB) Typical3.67.110.213.516.520.5
    Insertion Loss (dB) Max4.07.310.513.716.921.0
    Loss Uniformity (dB)0.60.60.81.21.52
    PDL(dB)0.20.20.20.250.30.35
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
    Port Configuration2X22X42X82X162X322X64
    Insertion Loss(dB) Typical3.87.410.814.21721
    Insertion Loss (dB) Max4.27.811.214.617.521.5
    Loss Uniformity (dB)11.41.522.52.5
    PDL (dB)0.20.20.40.40.40.5
    Wavelength Dependent Loss(dB)0.80.80.80.80.81
    Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
    48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea

    48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black
