950mm Width Manual Water-based glue film laminating machine with
counting device
Introduction:
1. The machine adopts inverter, with stable performance.
2.it equips with the automatic stopping for lacking paper, paper
counting, automatic film cutting, treatment of finished product
fast pushing systems.
3 This machine has a compact structure and reasonable, with
high-speed and energy-saving .
4 Adopt immersion coating method, the pump automatic purvey glue .
5 Power supply for 220V, 50HZ.
6 The machine adopts Cast-iron structure, long service life, no
deformation.
7. The machine using four rollers double pressure Lamination,
product quality is stable and reliable.
Usage
Water-based film laminating machine is a full environment-friendly
laminating machinery, it uses environmental protection of
water-soluble glue, which can be put film (BOPP) or polyester film
and print Lamination. Products has a high degree of transparency,
good dimensional sense, and easy to stick. There is no snow, and
non-foaming, non-toxic, and tasteless. The products are widely used
in textbooks, book cover, pictures, calendars, product samples,
packaging carton mounted plastic, which is an ideal equipment to
improve print quality.
main technical parameters:
| Model | SDFM-1000B | SDFM-1200B |
| Effective Width | 950mm | 1150mm |
| Motor Power | 3.125KW | 3.125KW |
| Speed | 0-50m/min | 0-50m/min |
| Overall Dimensions | 2600*1600*1500 | 2600*1800*1500 |
| Overall Weight | 1.2T | 1.5T |
| Power | 220V/50HZ | 220V/50HZ |
Contacts:
Machine picture:

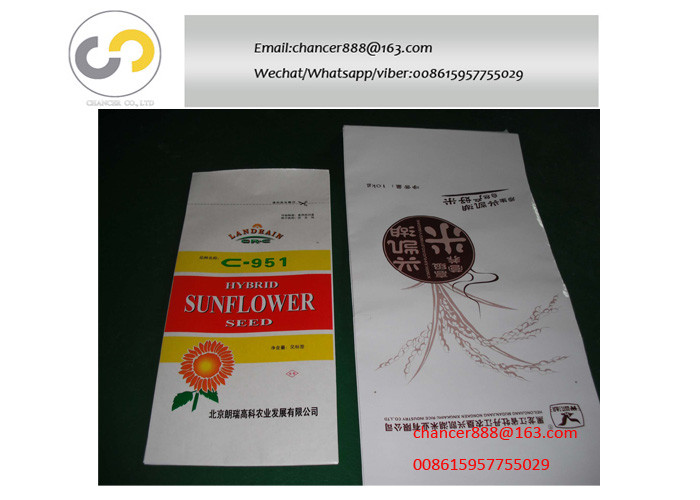

Sample:
