| Brand Name : | GALAXY |
| Model Number : | GS60 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 sets per month |
| Delivery Time : | 15-30 days |

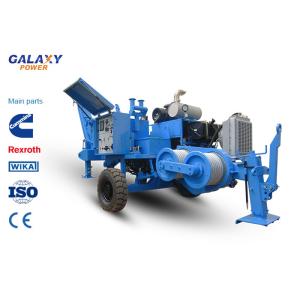

Max intermittent pull 60kN Pulling Equipment Diesel 77kW(103hp) Hydraulic Puller
This machine is provided with a pull pro-setting system that maintains the pre-set pulling value by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
| Model | Max intermittent pull kN | Max continuous pull kN | Speed at max pull km/h | Max speed km/h | Pull at max speed kN | Bull-wheel diameter mm | Groove number | Max rope diameter mm | Max diameter of rope reel mm | Total weight kg | Overall diaension mm |
| GS40 | 40 | 30 | 2.5 | 5 | 20 | 400 | 7 | 16 | 1200 | 3000 | 3600*2600 *2200 |
| GS60 | 60 | 50 | 2.5 | 5 | 25 | 450 | 7 | 18 | 1400 | 3500 | 3800*2100 *2300 |
| GS90 | 90 | 80 | 2.5 | 5 | 40 | 540 | 8 | 21 | 1400 | 4680 | 4000*2200 *2100 |
| GS120 | 120 | 100 | 2.5 | 5 | 50 | 600 | 10 | 24 | 1400 | 4800 | 4000*2300 *2300 |
| GS150 | 150 | 120 | 2.5 | 5 | 60 | 600 | 10 | 24 | 1600 | 5500 | 4300*2300 *2400 |
| GS180 | 180 | 150 | 2.5 | 5 | 75 | 700 | 10 | 27 | 1400 | 6800 | 4300*2360 *2380 |
| GS220 | 220 | 180 | 2.5 | 5 | 90 | 760 | 10 | 30 | 1600 | 6800 | 5300*2360 *2750 |
| GS280 | 280 | 250 | 2.5 | 5 | 120 | 960 | 11 | 38 | 1600 | 12800 | 5800*2500 *2850 |
| GS380 | 380 | 350 | 2.5 | 5 | 170 | 960 | 11 | 38 | 1900 | 13600 | 6000*2600 *2800 |
| Model | Diesel kw(hp) | Cooling system | Electrical system V | Engine | Main pump | Main motor speed reducer | Tail bracket hoisting motor | Hydraulic meter | Operating handle |
| GS40 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS60 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS90 | 118(158) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS120 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS150 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS180 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS220 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS280 | 298(400) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS380 | 440(590) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| Configuration | Grounding connection point |
| On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 | |
| Hydraulic front stabilizer | |
| Hydraulic dynamometer with set-point and automatic control of maximum pull | |
| Control instruments for hydraulic system and diesel engine | |
| Hydraulic oil cooling system | |
| Additional Devices | Lighting system for the trailer |
| Hydraulic rope clamp for reel change | |
| Extra shaft | |
| Trailer for towing at max speed of 30 km/h | |
| Swivel guide rope roller | |
| Digital speed and meter counter (extra charge) |

|
