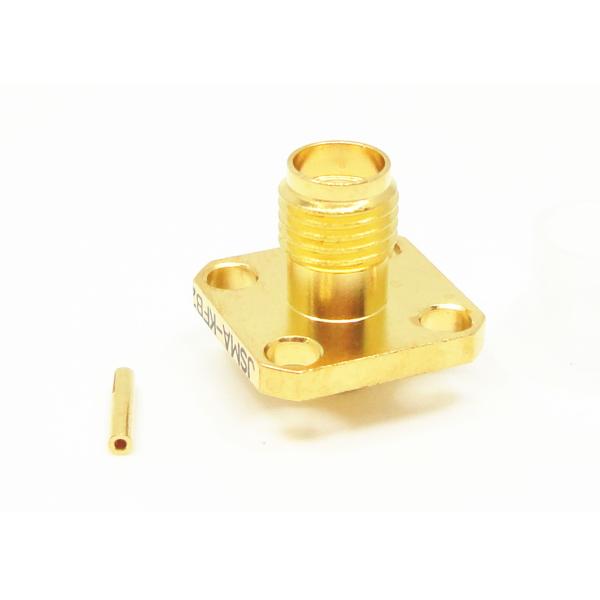

RF Coaxial Cable Connectors Solder Attachment 50Ohm Female SMA Jack
Connector
SMA series is a kind of mini, high-frequency RF coaxial connector,
it's developed and produced according to MIL-C-39012. With
characteristics of small volume,good bandwidth,superior electrical
characteristics. SMA is the most widely used RF coaxial connectors
in different fields of microwave communication and microwave
measuring device.The high performance connector developed by our
company can reach to 20GHz.
Specification:
Note: The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Connect with semi-rigid cable |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Copper Alloy Gold plated |
| Female | Copper Alloy Gold plated |
| Shell and other Metal Parts | Copper Alloy Gold plated |
| Stainless Steel Passivation |
| Crimping Sleeve | Copper Alloy Nickel plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
Advantages:
√ Rich selection of connector
(BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP etc.),
more than 500
experienced workers with over 10 production lines
√ Specializes in manufacturing RF connector more than 20 years
√ Have long and rich cooperation experience with national project
components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK
ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
Application:
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
