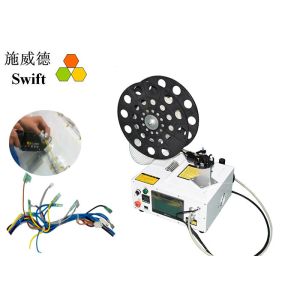

Power AC220V Handheld Automatic Cable Tie Tool Cable Tie reels
100mm Length
Automatic bundle wires with cable ties within 1seconds, using cable
tie reels, 5,000pcs per reel.
Main features
1. Designed, manufactured, assembled, tested by our engineers in
our own factory.
2. Electrical and pneumatic machine.
3. All product contact parts high quality steel alloy /
constructional steel / plastic material.
4. Omron PLC, a touch screen with Chinese/English.
5. Cable tie reels run out detection.
6. Cable ties “set quantity” reach detection.
7. Alarm function if anything wrong.
8. Fault text display.
9. CE, RoHS, ISO9001: 2015.
Technical data
| Description | Automatic cable tying system |
| Brand | SWIFT |
| Model | SWT25100HC |
| Advantages | 1. Using cable tie reels 2. Without hands threading, pulling and tightening, cutting, the
machine would do these actions. 3. Small and durable. 4. With a completely flash cut. 5. The tension force adjustable. 7. With heat function. |
| What cable ties can be used in this machine? | Ties type | Cable tie reels |
| Tie model | C25100 |
| Tie width | 2.5mm |
| Tie length | 100mm/2.5inch |
| Tie thickness | 1.1mm |
| Tensile strength | 8Kgf |
| Quantity per reel | 5,000pcs |
| Max bundling Dia. for wire | 1.8cm |
| Max bundling Dia. for tube | 1.6cm |
| Min bundling Dia. | 0.3cm |
| Bundling speed | 1.0S |
| Cable tie gun details | Power | DC24V auto transferred |
| Size | L250 * W102* T64mm |
| Tension forces | Adjustable |
| Power supply | AC220V, 50/60Hz; AC110V, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |
| Max Power | 1,000W |
| Certificates | CE, RoHS |
Advantages
1. Professional manufacturer of automatic cable tie tool with more
than 7years experience.
2. 5 million cycles maintenance free.
3. Operation guide before use.
4. The cable tie waste could be collected into a box.
5. Automatically deal with the failure of cable tie bundle.
Machine dimensions
Length: 710mm
Width: 470mm
Height: 230mmm
G.W.: 36kg
N.W.: 31kg
How to operate machine?
1. Install cable tie reel and debug them in right place.
2. Install cable tie tool and test.
3.Pull the trigger again and again.
Applications
Bundle wires/tubes/metal bars with cable ties
FAQ
1. Must it use C25100 cable tie reels if I buy this machine?
In theory, it must. If you use other brand cable ties, please send
some to us to test.
2. What is the warranty?
12months.
3. What should I do if the machine has anything wrong?
First, the machine can deal with some problems by itself. Second,
when it can’t deal with them, it will alarm and give you tips that
what is the reason. Then you can deal with problems according to
the manual or send an email to our sales team and they will help
you.
