| Brand Name : | IKB-MKB |
| Model Number : | K-TEK-A12KP-AC |
| Certification : | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
| Price : | US |
| Supply Ability : | 3000psc/month |
| Delivery Time : | ASAP Within 2 weeks upon payment confirmed |
| Payment Terms : | Full payment in advance, Western Union, T/T, Paypal |
IP65 12 Keys Metal Keypad 4x3 Acess Control System Numeric Keypads
Descriptions:
12 keys compact format IP 65 vandal proof metal dot matrix keypad with Zinc alloy chromed keys and frame, with industrial PCB with carbon-on-gold key switch with long stroke 2.0mm, rear panel mounted, dot matrix keypad without electronics controller. Blue backlight optional.
Dimensions: 69.0mm x 72.00mm (front panel)
| MECHANICAL DATA | ELECTRICAL DATA |
| Working voltage: DC 9v+/-5% | |
| Lifespan: >5 years | |
| Keys: 12 keys, Zinc alloy | Key switch: Natural electrical conductive silicon rubber |
| Key Size: 10.0mm x 10.0mm | Pin pitch space: 2.54mm |
| Key travel: 2.0mm | Working temperature: -20℃+60℃ |
| Switch life: more than 5 million of operations. | Storage temperature:-30℃+70℃ |
| Operating RH: 30-90% | |
| Atmospheric pressure 80~106kPa | |
| Force 160-180 grams, nimble dial-up | |
| Contact resistance<100 Ω |
Mechanical Drawing:

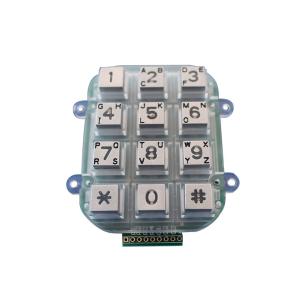

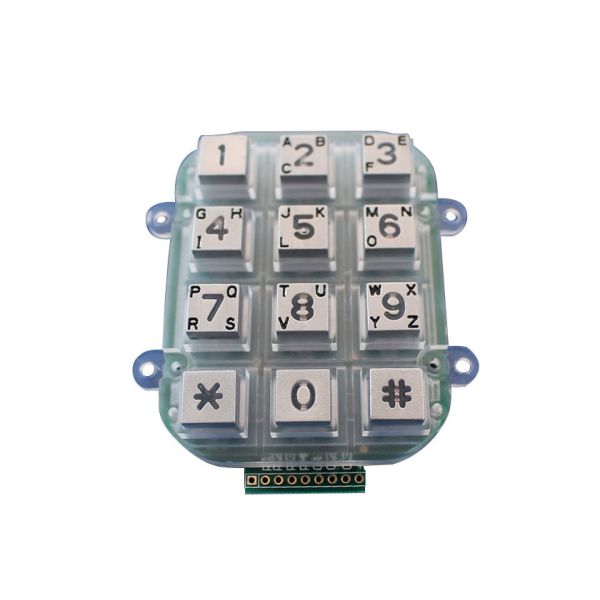

Actual Photos:
