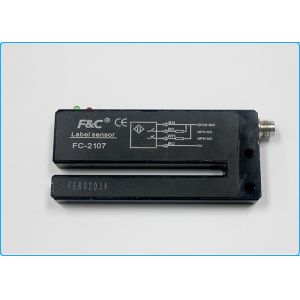

    M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

    Ask Lasest Price
    Brand Name : F&C
    Model Number : FC-2107P/D
    Certification : CE,Rohs
    Price : Negotiable
    Payment Terms : TT, paypal, Western Union
    Supply Ability : 50pcs per week
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

    M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

    M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

    Optical Label sensor used for most common sticker label and not suitable for clear label sensing, it is very popular in market with competitive price.



    Specifications for Adhesive Optical Label sensor:


    ModelFC-2107P/D
    Output typePNP NO NC
    Detection distance5mm
    Light source940nm infrared modulated light
    Operating voltageDC12-24V±10%
    Current consumption15mA Max
    Load current100mA Max at DC ;24V
    Protection circuitReverse polarity protection and short circuit protection
    Response time500us Max
    Leakage current<0.01mA no-load
    Operating temperature-10℃-+50℃(without icing or condensation)
    Storage temperarure-20℃~+60℃(No freezing )
    Ambient humidity35%-85% RH
    Protection degreeIP66
    MeterialAluminium metal sheet
    Wiring methodφ4mm×2M/4-wires/φ4mm×2M/M8 4-wires

    Applications


    Video or more details, welcome to inquiry us.
