8P8C Gold - Plated RJ45 Circular Connector Quick Push Pull Locking For LED Display

    Buy cheap 8P8C Gold - Plated RJ45 Circular Connector Quick Push Pull Locking For LED Display from wholesalers

    Buy cheap 8P8C Gold - Plated RJ45 Circular Connector Quick Push Pull Locking For LED Display from wholesalers
    • Buy cheap 8P8C Gold - Plated RJ45 Circular Connector Quick Push Pull Locking For LED Display from wholesalers

    8P8C Gold - Plated RJ45 Circular Connector Quick Push Pull Locking For LED Display

    Ask Lasest Price
    Brand Name : Jnicon
    Model Number : RJ45 connector Waterproof
    Certification : UL/TUV/CQC/CE
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal,Western Union, L/C, D/A, D/P, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

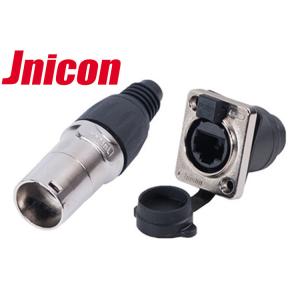

    8P8C Gold - Plated RJ45 Circular Connector Quick Push Pull Locking For LED Display

    8P8C Gold-plated RJ45 Waterproof Connector For LED Display


    Description of 8P8C Glod-plated RJ45 Waterproof Connector


    This CCTV waterproof connector RJ45 is a great choice for signal transmission in harsh environments,The 8P8C Rj45 waterproof connector could be widely used in the following application.


    Technical Parameters
    Connecting modeQuick push pull Locking
    Protection levelIP65
    Cable specification0.15mm2~0.2mm2 /26~24AWG
    Diameter rangeΦ5.5mm ~Φ7mm
    Current rating(A)5A
    Contact resistance<30mΩ
    Insulation resistance>500MΩ
    Durability≥500 mating&unmating cycles
    Temperature rating-40°C~105°C
    Prevent the combustion levelUL94-V0

    Application

    • LED Display
    • Lighting outdoor
    • Mechanical Automation
    • Electric vehicle charging
    • Communication control box

    Materials
    Insulated partsHigh performance engineering plastics
    Hardware metalZinc alloy(pearl hard chromium)
    Contact pinCopper alloy(gold-plated)
    SpringStainless steel
    SealingSilica gel
    FAQ

    1. Q: What if I need the products have some differences on specification from yours?
    A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.

    2. Q: How to contact with you?
    A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.

    3. Q: Can I visit your factory?
    A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

    4. Q: What type waterproof connector do you have?
    A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
