2 Pin Waterproof Male Female Connector , IP68 Circular Plastic Connectors For Lighting

2 Pin Waterproof Male Female Connector IP68 Plastic Connector For Lighting

Characterization of Goods

M12 2pin waterproof male female connector is widly used for outdoor lighting , like tunnel light , washing light , garden light , street light etc . In a word , you can apply the M12 waterproof wire connector in all of the lighting equipment , but the max current should be no more than 20 A , and the operating voltage is 300v . So when you want to buy M12 waterproof wire connector , you should confirm some details

• NO .1 confirm the current & voltage
• NO .2 confirm the pin of contact
• NO .3 confirm the cable specification and cable OD
• NO .4 confirm the material of cable and length of cable

( PS : if you don't know a lot about the connector , just contact me , then tell me about your requirement of connector , I will provide you with the solution )

Some Operating Datas About the M12 Waterproof Wire Connectors

Electrical characteristics & Mechanical

1 Electrical characteristics

• Contact Resistance : 3mΩ max.
• Insulation Resistance : 10MΩ min.
• Withstand Voltage : 2000V AC There shall be no breakdown.
• Rating : DC 50V 20A ( For each pin )

2 Mechanical

• Cable OD : 6.0mm~11.0mm
• Wise size : 0.3mm2
• Life test : Mating & Unmating 500 cycles

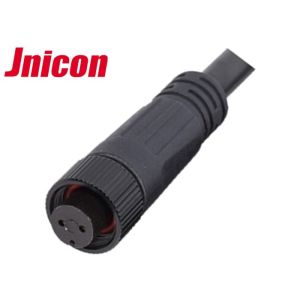

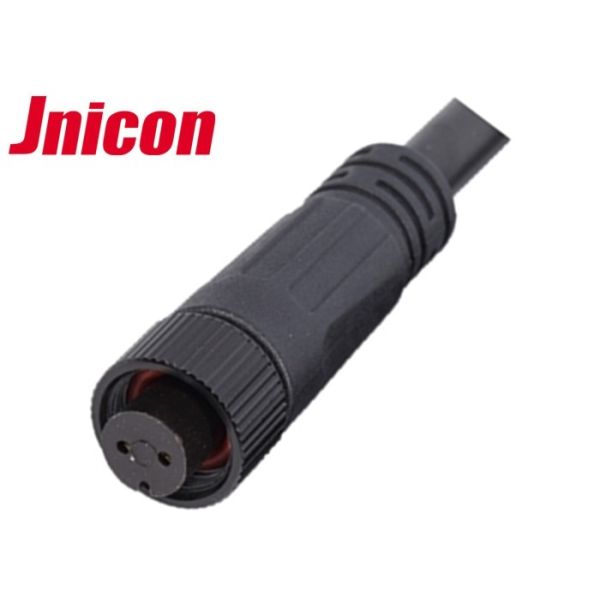

Picture - M12 2Pin Female Waterproof Wire Connectors

M12 2Pin Male Waterproof Wire Connectors

Male and Female Cable Connector IP68

Payment Method as Below

1. Usually pay for the payment by T / T , Paypal
2. L/C , D/A , D/P , Western Union are optional
3. In general , we arrange production after payment
4. Payment currency : US dollars or RMB
5. Payment term: T/T full payment before delivery

Shenzhen Jnicon Technology Co.,Ltd. is specialized in waterproof connectors, power connector and signal connectors’ research and development, manufactures and sales, products up to 14 series more than 1000 varieties, widely applied in outdoor LED lighting, LED display, communication, new energy, automobile electronic applications etc.

Jnicon is located in Shenzhen China,own more than 200 people's team,4000 square meters factory,varites of test equipments of environment,electric and machinery 3 aspects.Jnicon does not only povide waterproof and high-current connectors, but also offer the service of customized connectors and cable assembly.

Jnicon has more than 50 items invention, utility model and design patents till 2017. In addition,all our connectors have UL,TUV,CCC,CE and Rohs certificate.

we are committed to providing responsive, cost effective, efficient and reliable logistic solution to our customers.

With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.

The best customer service is the cornerstone of operations here at Jnicon . We are also welcome OEM and ODM orders, welcome selecting a current product from our catalogue, or seeking assistance for your application, you can talk to our international sales team about source requirements.
