Product introduction

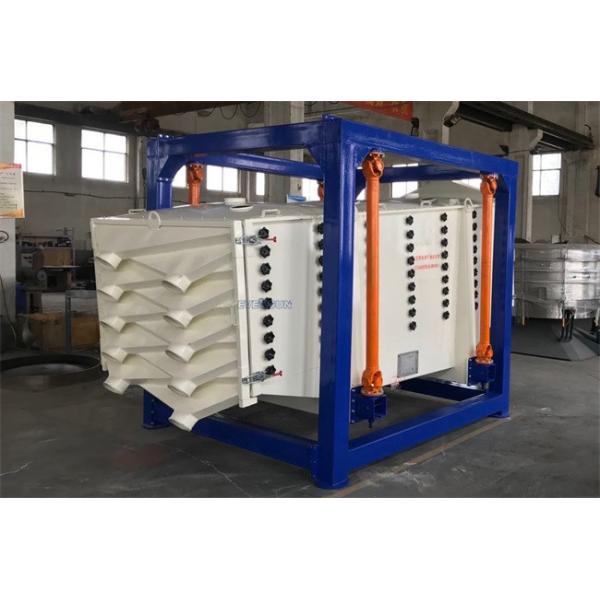

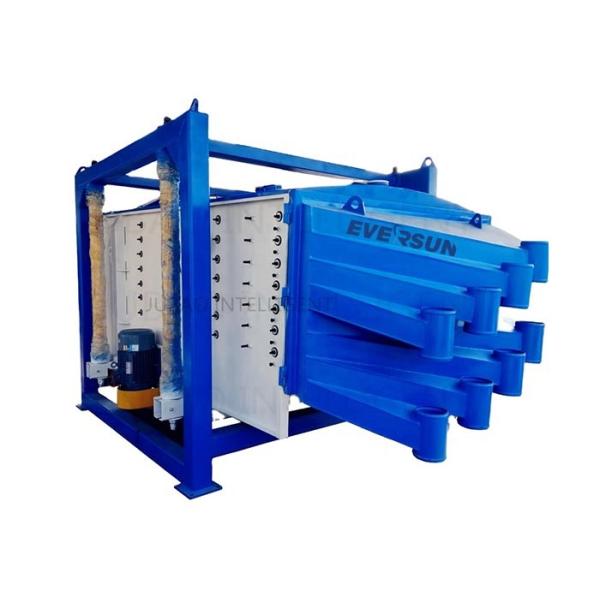

Large Output Multilayer Graded Square Gyratory Sifter For Magnetic
Materials
Square gyratory sifter is also called reciprocating screen, if see
from the motion trail of screen box. The vibratory force produced
by its driving device is the inertial force twining along the dead
axle, the direction of which is change according to a certain
regular. The essence of square swinging screen is the reciprocating
inertial force formed by the rotation of eccentric wheel winding
the dead axle. According to the structure characteristics and
working principle of swinging screen, the screen surface is
arranged with level or incline (angle of inclination is 0-5
degree). After turn on the swinging screen, the screen box take
reciprocating movement under the inertial force, screen box drives
screen surface to make periodic shaking, which makes the materials
on the screen surface to make directional jumping movement with the
screen box. During the period, the material less than the screen
aperture falls to under layer, the material bigger than the screen
aperture make jumping movement, discharged from the coarse outlet.

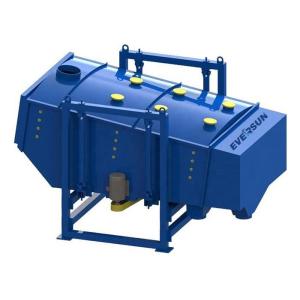

Our company can make 3D models of square gyratory sifter for you to
fully show the appearance and structure of products, and vividly
show their functional characteristics.Meanwhile,we can also design
drawings for you if you need them.
Technical specification
| Model | EFYB-2036 |
|---|
| Layer | 1-5 |
|---|
| Effective screening area(㎡) | 7.2 |
|---|
| Angle degree | 5-10 |
|---|
| Power(kw) | 7.5 |
|---|
| Dimension(mm) | 4200*2600*2400 |
|---|
| Voltage | Optional |
|---|
| Rotation frequency | 180~260 r/min |
|---|
Advantages
1. The sieve machine has a fully enclosed structure and open
structure. The fully enclosed structure has the ability to sieve
fine powder, dust does not fly, the use of bias balance, so that
the sieve machine vibration is small, low noise, in line with
environmental requirements. The open structure is suitable for
sieving and screening of materials with large granularity, and it
can be effective for visual inspection and control in terms of
feeding.
2. The sieve has three kinds of motion trajectory of combined
circular, elliptical and linear, with good sieving effect, without
destroying the original structure of the material, suitable for
sieving and screening of a variety of materials.
3. Equipped with effective sieve plate installation system, easy to
clean, so that the high utilization rate of the sieve plate, long
life, easy to change the sieve plate structure operation.
4. Strengthened universal base, to ensure more balanced operation
of the equipment, can also be used according to the actual site
hanging structure to meet customer needs.
5. The sieve machine can achieve four layers of effective
screening, and the discharge port can be discharged according to
the customer's demand.
Square gyratory sifter applicable industries:
Food industry: starch, salt, sugar, milk powder, etc.
Chemical industry: pigment, pharmaceutical powder, grease, rubber,
plastic, epoxy resin, PVC resin granule, polyethylene powder, vinyl
chloride resin, polymerization granule.
Kiln industry category: glass powder, refractory materials, silica
sand, spray clay granules, mud, grinding materials, rice resistant
brick materials, artificial black lead, kaolin, slaked lime, mica,
alumina, calcium carbonate
Metallurgical mining industry: lead powder, zinc powder oxygen,
gold steel powder, aluminum powder, iron powder.
Other industries:carbon black, light calcium, additives, pearl
powder, etc.
Mining category: quartz sand, vitrified sand, petroleum proppant.
If you are interested in our products, or would like to know more
information, please contact us
